WDS5P1AC Nidec 5 hp 3600 RPM 184TC All-Stainless (Rigid Base) 208-230/460V TEFC 3-Phase Washdown Motor
WDS5P1AC Nidec 5 hp 3600 RPM 184TC All-Stainless (Rigid Base) 208-230/460V TEFC 3-Phase Washdown Motor
WDS5P1AC Nidec 5 hp 3600 RPM 184TC All-Stainless (Rigid Base) 208-230/460V TEFC 3-Phase Washdown Motor
WDS5P1AC Nidec 5 hp 3600 RPM 184TC All-Stainless (Rigid Base) 208-230/460V TEFC 3-Phase Washdown Motor

Nidec

WDS5P1AC Nidec 5 hp 3600 RPM 184TC All-Stainless (Rigid Base) 208-230/460V TEFC 3-Phase Washdown Motor

(No reviews) Write a Review
$2,030.90
$1,813.21
SKU WDS5P1AC
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 5 HP
RPM 3600
Phase Three Phase
Enclosure TEFC
Hertz 60 Hz
Amperage 11.8/5.9 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 5 hp 3600 RPM, 13.3-11.8/5.9 amps 208-230/460 Volts 60 Hz Three Phase Motor

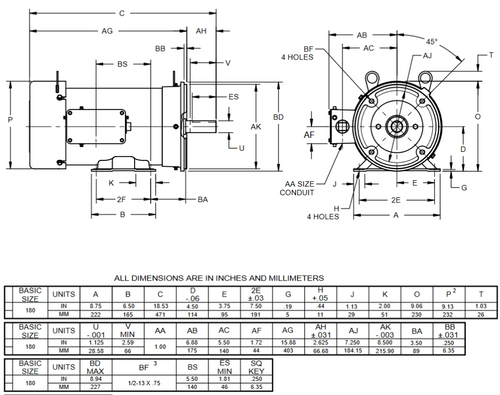

  • NEMA 184TC Rolled Steel Frame, Keyed Shaft 1 1/8" Diameter x 2 3/4"
  • Service Factor: 1.15 Overload protection = None
  • C-Face Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

All Stainless Steel wash-down motor for food and pharmaceutical applications. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan-Cooled. FA08

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230/460V
Horsepower 5 HP
RPM 3600
Phase Three Phase
Enclosure TEFC
Hertz 60 Hz
Amperage 11.8/5.9 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
