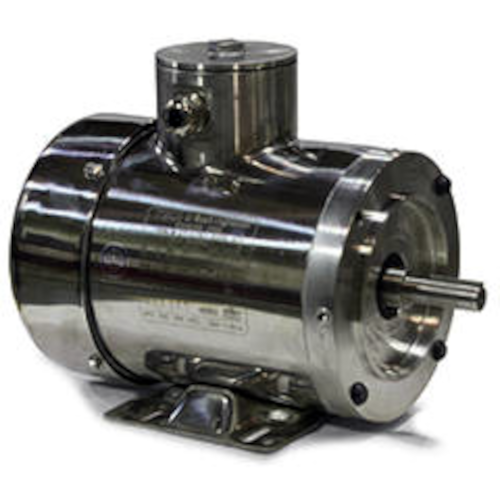

WFR0012C TECO-Westinghouse 1 HP 3600 RPM 56C Frame 230/460V TEFC Stainless Steel 3-Ph F1 Motor
WFR0012C TECO-Westinghouse 1 HP 3600 RPM 56C Frame 230/460V TEFC Stainless Steel 3-Ph F1 Motor

TECO WESTINGHOUSE

WFR0012C TECO-Westinghouse 1 HP 3600 RPM 56C Frame 230/460V TEFC Stainless Steel 3-Ph F1 Motor

(No reviews) Write a Review
$794.59
SKU WFR0012C
Shipping Free Shipping
Voltage 230/460V
Horsepower 1 HP
RPM 3600
Phase Three Phase
Frame 56C
Enclosure TEFC
Hertz 60 Hz
Amperage 2.8/1.4 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class F
Mounting C-Face
Adding to cart… The item has been added
Description

TECO WESTINGHOUSE, NEMA PREMIUM ELECTRIC MOTOR

  • 1 hp 3600 RPM, 1-Speed, 2.8/1.4 amps, 230/460 Volts 60 Hz.
  • 56C Stainless Steel Frame, Stainless Steel Shaft: 5/8" x 1 7/8" with key
  • Rotation = Reversible, Overload Protector: Automatic
  • Service Factor = 1.15, Insulation Class F
  • Ball Bearing, 3-Phase, C-Face or Footed Mounting
  • 1 Year Manufacture Warranty, F1 Conduit Box Mounting

Motor for Applications Where It will be Subjected to High Pressure Spray Down such as in food preparation and car washes. Totally Enclosed Fan-Cooled (TEFC)

Specifications
Voltage 230/460V
Horsepower 1 HP
RPM 3600
Phase Three Phase
Frame 56C
Enclosure TEFC
Hertz 60 Hz
Amperage 2.8/1.4 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class F
Mounting C-Face
!
