X004 Marathon 1/2 hp 115V 1075 RPM (3 speed) OPAO 48Y Frame Blower Motor

X004 Marathon 1/2 hp 115V 1075 RPM (3 speed) OPAO 48Y Frame Blower Motor

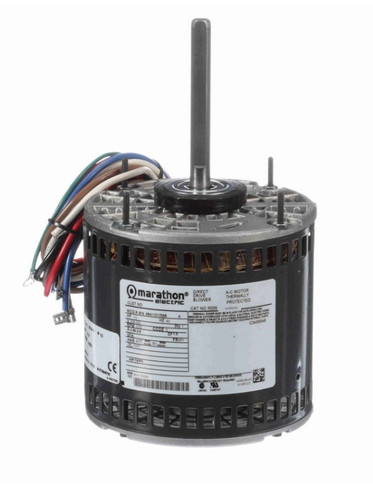

This Marathon blower motor delivers reliable airflow for HVAC and industrial applications. Designed to replace similar 1/2 horsepower motors, it operates efficiently at multiple speeds to suit various ventilation needs.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1075
• Voltage: 115 V
• Amperage: 6.2 A
• Enclosure: Open Open Air Over (OPAO)
• Frame / Diameter: NEMA 48Y Frame
• Shaft Dimensions: 1/2" diameter x 4" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a Permanent Split Capacitor (PSC) design with automatic thermal protection for enhanced durability. It comes without a base and is intended for installation in air-stream environments due to its open enclosure design. The keyed shaft ensures secure coupling, and the motor supports vertical or horizontal shaft orientation.

Warranty

1 Year Manufacturer Warranty
