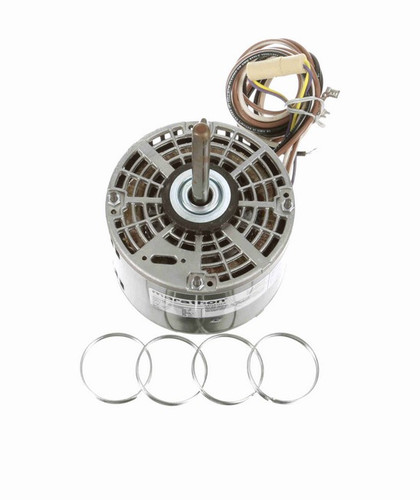

X473 Marathon 1/6 hp 115V 1075 RPM (1 speed) OPAO 48Y Frame Blower Motor

X473 Marathon 1/6 hp 115V 1075 RPM (1 speed) OPAO 48Y Frame Blower Motor

This Marathon blower motor is designed for HVAC applications requiring reliable air movement within buildings. It replaces standard 1/6 horsepower motors and is suitable for systems needing a 115V, 1075 RPM motor with a keyed shaft.

Key Specifications

• Horsepower: 1/6 hp
• RPM: 1075
• Voltage: 115 V, 60 Hz
• Amperage: 2.9 A
• Enclosure: Open Open Air Over (OPAO)
• Frame / Diameter: NEMA 48Y Frame
• Shaft Dimensions: 1/2" Diameter x 4" Length, keyed with resilient rings
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a Permanent Split Capacitor (PSC) design with automatic thermal protection and Class A insulation for durability. It comes without a base and is intended for installation in the air stream due to its OPAO enclosure type. The shaft orientation can be vertical or horizontal, making it versatile for various blower configurations.

Warranty

1 Year Manufacturer Warranty
