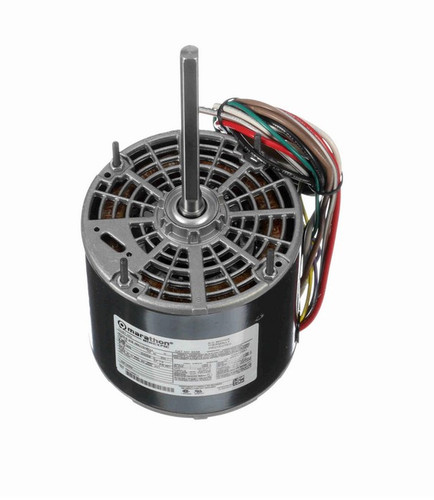

X038 Marathon 1/2 hp 460V 1075 RPM (2 speed) OPAO 48Y Frame Blower Motor

SKU:: X038
UPC:
Weight:: 17.00 LBS
Width:: 7.00 (in)
Height:: 7.00 (in)
Depth:: 14.00 (in)
Shipping:: Free Shipping
ON SALE:: DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:: 460V
Horsepower:: 1/2 HP
RPM:: 1075
Frame:: 48Y
Hertz:: 60 Hz
Amperage:: 1.6 Amps
Bearings:: Ball Bearings
Speeds:: 2-Speed
Insulation Class:: Class B

Current Stock:

Was: $345.35

Now: $299.00

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

X038 Marathon 1/2 hp 460V 1075 RPM (2 speed) OPAO 48Y Frame Blower Motor

This Marathon blower motor is designed for HVAC and industrial air-moving applications, providing reliable performance with a 1/2 horsepower rating. It is suitable for replacing motors requiring a 48Y frame and operates efficiently in open air over (OPAO) environments.

Key Specifications

Horsepower: 1/2 hp
RPM: 1075
Voltage: 460 V
Amperage: 1.6 A
Enclosure: Open Open Air Over (OPAO)
Frame / Diameter: NEMA 48Y Frame
Shaft Dimensions: Keyed shaft, 1/2" diameter x 6" length
Bearings: Ball Bearings

Product Features & Fitment

The motor features a permanent split capacitor (PSC) design with automatic thermal protection and a service factor of 1.0. It is reversible and does not include a base, allowing flexible mounting options. The motor shaft orientation can be vertical or horizontal, and it requires installation in an air stream due to its open enclosure design.
