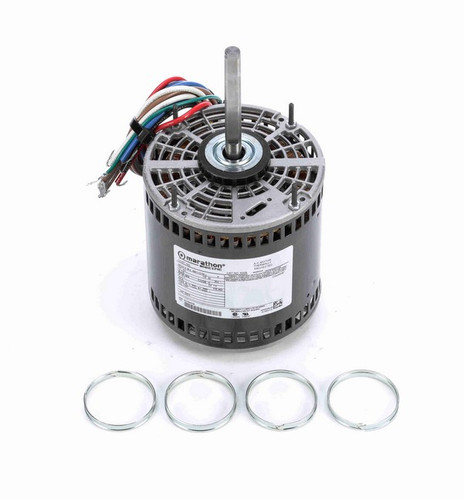

X009 Marathon 3/4 hp 115V 1075 RPM (3 speed) OPAO 48Z Frame Blower Motor

X009 Marathon 3/4 hp 115V 1075 RPM (3 speed) OPAO 48Z Frame Blower Motor

This Marathon blower motor delivers reliable 3/4 horsepower performance for HVAC and industrial air handling applications. Designed to replace compatible motors, it operates efficiently at 115 volts with a three-speed capability and is ideal for use in air-moving equipment.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1075
• Voltage: 115 V
• Amperage: 10.2 A
• Enclosure: Open Open Air Over (OPAO)
• Frame / Diameter: NEMA 48Z Frame
• Shaft Dimensions: 1/2" diameter x 4" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a Permanent Split Capacitor (PSC) design with automatic thermal protection and Class B insulation for durability. It comes without a base and is suitable for installation with the shaft oriented vertically or horizontally. The open enclosure requires mounting within an air stream to ensure proper cooling.

Warranty

1 Year Manufacturer Warranty
