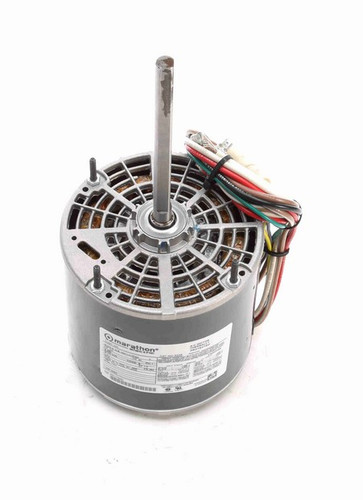

X039 Marathon 3/4 hp 460V 1075 RPM (2 speed) OPAO 48Z Frame Blower Motor

X039 Marathon 3/4 hp 460V 1075 RPM (2 speed) OPAO 48Z Frame Blower Motor

This Marathon blower motor is designed for HVAC and industrial air-moving applications, providing reliable performance as a replacement motor. It features a two-speed operation and is intended for use in open air over (OPAO) environments where the motor is cooled by the air stream.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1075
• Voltage: 460 V
• Amperage: 2.1 A
• Enclosure: Open Open Air Over (OPAO)
• Frame / Diameter: NEMA 48Z Frame

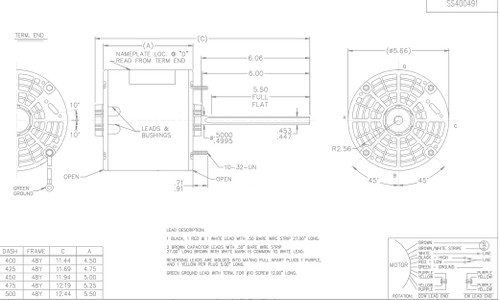

• Shaft Dimensions: 1/2" Diameter x 6" Length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor includes a keyed shaft and features a Permanent Split Capacitor (PSC) design for efficient operation. It comes without a base and incorporates automatic thermal protection to prevent overheating. The motor is equipped with Class B insulation and a service factor of 1.0, suitable for vertical or horizontal shaft mounting.

Warranty

1 Year Manufacturer Warranty
