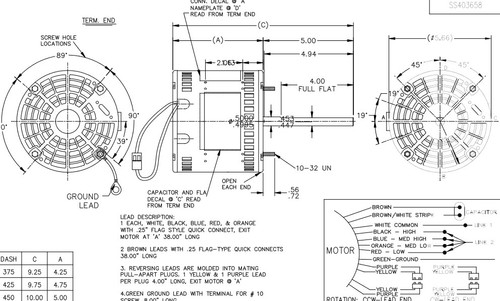

X033 Marathon 1/2 hp 115V 1075 RPM (4 speed) OPAO 48Z Frame Blower Motor

X033 Marathon 1/2 hp 115V 1075 RPM (4 speed) OPAO 48Z Frame Blower Motor

This Marathon blower motor is designed for HVAC applications requiring reliable air movement. It replaces standard blower motors and is suitable for both vertical and horizontal shaft mounting in air-handling systems.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1075
• Voltage: 115 V, 60 Hz
• Amperage: 6.1 A
• Enclosure: Open Open Air Over (OPAO)
• Frame / Diameter: NEMA 48Z Frame
• Shaft Dimensions: Keyed shaft, 1/2" diameter x 4" length
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

This motor features a Permanent Split Capacitor (PSC) design with automatic thermal protection and Class B insulation. It comes without a base and requires installation within an air stream due to its open enclosure design. The keyed shaft ensures secure coupling with blower components.

Warranty

1 Year Manufacturer Warranty
