X1P2B Nidec 1 hp 1800 RPM 143T Frame (Rigid Base) 230/460V TEFC 3-Phase Hazardous Duty Motor
X1P2B Nidec 1 hp 1800 RPM 143T Frame (Rigid Base) 230/460V TEFC 3-Phase Hazardous Duty Motor
X1P2B Nidec 1 hp 1800 RPM 143T Frame (Rigid Base) 230/460V TEFC 3-Phase Hazardous Duty Motor
X1P2B Nidec 1 hp 1800 RPM 143T Frame (Rigid Base) 230/460V TEFC 3-Phase Hazardous Duty Motor

Nidec

X1P2B Nidec 1 hp 1800 RPM 143T Frame (Rigid Base) 230/460V TEFC 3-Phase Hazardous Duty Motor

(No reviews) Write a Review
$683.10
$609.96
SKU X1P2B
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 1 HP
RPM 1800
Phase Three Phase
Frame 143T
Enclosure TEFC
Hertz 60 Hz
Amperage 3.0/1.5 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 1 hp 1800 RPM, 3.0/1.5 amps  230/460 Volts 60 Hz Three Phase Motor

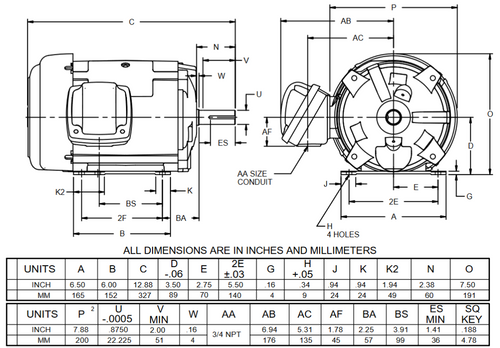

  • NEMA 143T Cast Iron frame Keyed Shaft 7/8" Diameter x 2 1/4"
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

General purpose Division 1 hazardous location motor for class 1 group D and class 2 group FG.  Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. DS62

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 1 HP
RPM 1800
Phase Three Phase
Frame 143T
Enclosure TEFC
Hertz 60 Hz
Amperage 3.0/1.5 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
