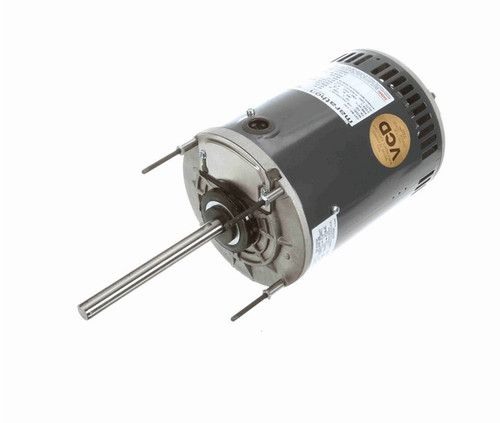

X207 Marathon 3/4 hp 208-230/460V 1075 RPM OPAO (no base) 56Z Frame Condenser Fan Motor
X207 Marathon 3/4 hp 208-230/460V 1075 RPM OPAO (no base) 56Z Frame Condenser Fan Motor
X207 Marathon 3/4 hp 208-230/460V 1075 RPM OPAO (no base) 56Z Frame Condenser Fan Motor
X207 Marathon 3/4 hp 208-230/460V 1075 RPM OPAO (no base) 56Z Frame Condenser Fan Motor
X207 Marathon 3/4 hp 208-230/460V 1075 RPM OPAO (no base) 56Z Frame Condenser Fan Motor
X207 Marathon 3/4 hp 208-230/460V 1075 RPM OPAO (no base) 56Z Frame Condenser Fan Motor
X207 Marathon 3/4 hp 208-230/460V 1075 RPM OPAO (no base) 56Z Frame Condenser Fan Motor
X207 Marathon 3/4 hp 208-230/460V 1075 RPM OPAO (no base) 56Z Frame Condenser Fan Motor

Marathon

X207 Marathon 3/4 hp 208-230/460V 1075 RPM OPAO (no base) 56Z Frame Condenser Fan Motor

(No reviews) Write a Review
$612.84
$535.56
SKU X207
UPC 7.23E+11
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 208/230/460V
Horsepower 3/4 HP
RPM 1075
Frame 56Z
Hertz 60 Hz
Amperage 3.6/1.8 Amps
Bearings Ball Bearings
Insulation Class Class B
Adding to cart… The item has been added
Description
  • 3/4 hp 1075 RPM, 3.9-3.6/1.8 amps, 208-230/460 Volts 60 Hz, Permanent Split Capacitor (PSC)
  • NEMA 56Z Frame Keyed Shaft 5/8" Diameter x 6"
  • Service Factor = 1.0, Thermal Protection = Automatic
  • No Base, Reversible, Ball Bearings, Class B insulation
  • 1 Year Manufacture Warranty

Condenser Fan Motors are used in air conditioning coolant condenser units usually found outdoors. Shaft may be vertical or horizontal. OPAO = Open Air-Over so motor must be in air-stream. 056A11O5311

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 208/230/460V
Horsepower 3/4 HP
RPM 1075
Frame 56Z
Hertz 60 Hz
Amperage 3.6/1.8 Amps
Bearings Ball Bearings
Insulation Class Class B
!
