X235 Marathon 1 hp (1 speed) 200-230/460V 1075 RPM DPAO 56Y Frame 3 phase Canopy Motor
X235 Marathon 1 hp (1 speed) 200-230/460V 1075 RPM DPAO 56Y Frame 3 phase Canopy Motor
X235 Marathon 1 hp (1 speed) 200-230/460V 1075 RPM DPAO 56Y Frame 3 phase Canopy Motor
X235 Marathon 1 hp (1 speed) 200-230/460V 1075 RPM DPAO 56Y Frame 3 phase Canopy Motor
X235 Marathon 1 hp (1 speed) 200-230/460V 1075 RPM DPAO 56Y Frame 3 phase Canopy Motor
X235 Marathon 1 hp (1 speed) 200-230/460V 1075 RPM DPAO 56Y Frame 3 phase Canopy Motor
X235 Marathon 1 hp (1 speed) 200-230/460V 1075 RPM DPAO 56Y Frame 3 phase Canopy Motor
X235 Marathon 1 hp (1 speed) 200-230/460V 1075 RPM DPAO 56Y Frame 3 phase Canopy Motor

Marathon

X235 Marathon 1 hp (1 speed) 200-230/460V 1075 RPM DPAO 56Y Frame 3 phase Canopy Motor

(No reviews) Write a Review
$778.21
$671.95
SKU X235
UPC 7.23E+11
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 200/230/460V
Horsepower 1 HP
RPM 1075
Phase Three Phase
Frame 56Y
Hertz 60 Hz
Amperage 6.0/3.0 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class B
Adding to cart… The item has been added
Description
  • 1 hp 1075 RPM, 6.6-6.0/3.0 amps, 200-230/460 Volts 60 Hz, 3 phase

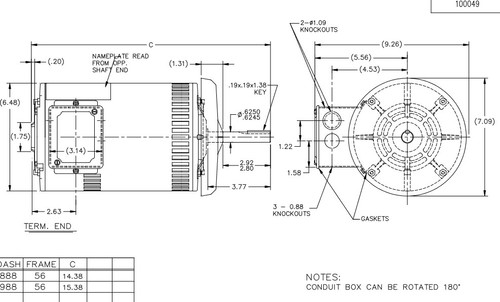

  • NEMA 56Y Frame Keyed Shaft 1 7/8" x 5/8" Diameter, 1 speed
  • Service Factor = 1.0, Thermal Protection = Auto
  • No Base, Reversible, Ball Bearings, Class B insulation
  • 1 Year Manufacture Warranty

Condenser motors are used to blow air through outdoor AC condenser units. DPAO = Drip-Proof Air-Over so motor must be in cooling air stream. 056T11D5209. Replaces Brand C motors.

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 200/230/460V
Horsepower 1 HP
RPM 1075
Phase Three Phase
Frame 56Y
Hertz 60 Hz
Amperage 6.0/3.0 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class B
!
