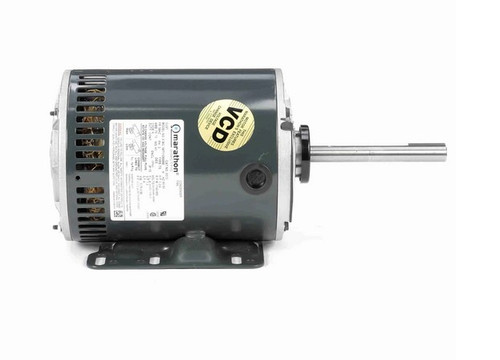

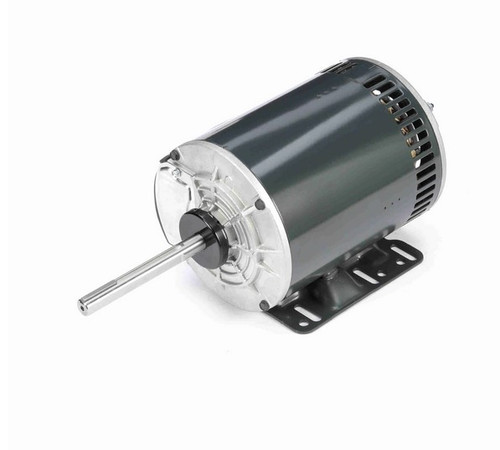

X513 Marathon 1 hp 3-phase 208-230/460V 1140 RPM OPAO 56HZ Frame Condenser Fan Motor

X513 Marathon 1 hp 3-phase 208-230/460V 1140 RPM OPAO 56HZ Frame Condenser Fan Motor

This Marathon condenser fan motor is designed for use in air conditioning coolant condenser units, typically installed outdoors. It serves as a reliable replacement motor suitable for systems requiring a 1 HP, 3-phase motor with Open Air-Over (OPAO) enclosure.

Key Specifications

• Horsepower: 1 HP
• RPM: 1140
• Voltage: 208-230/460 V
• Amperage: 4.0-4.2/2.1 Amps
• Enclosure: Open Air-Over (OPAO)
• Frame / Diameter: NEMA 56HZ Frame
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 5" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base for stable mounting and automatic thermal protection for enhanced durability. It is designed to operate in an air stream due to its Open Air-Over enclosure and can be installed with the shaft oriented vertically or horizontally, depending on system requirements. The motor includes Class H insulation for high-temperature resistance.

Warranty

1 Year Manufacturer Warranty
