X523 Marathon 1 1/2 hp 3-phase 208-230/460V 1140 RPM OPAO 56HZ Frame Condenser Fan Motor

X523 Marathon 1 1/2 hp 3-phase 208-230/460V 1140 RPM OPAO 56HZ Frame Condenser Fan Motor

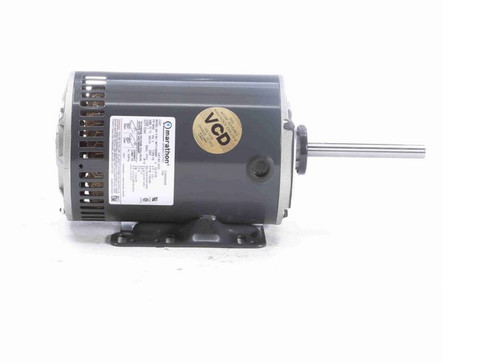

This Marathon condenser fan motor is designed for use in air conditioning coolant condenser units, typically installed outdoors. It replaces Century model H768 and features an open air-over (OPAO) design requiring placement within an air stream.

Key Specifications

• Horsepower: 1 1/2 hp
• RPM: 1140
• Voltage: 208-230/460 V
• Amperage: 5.4-5.4/2.7 A
• Enclosure: Open Air-Over (OPAO)

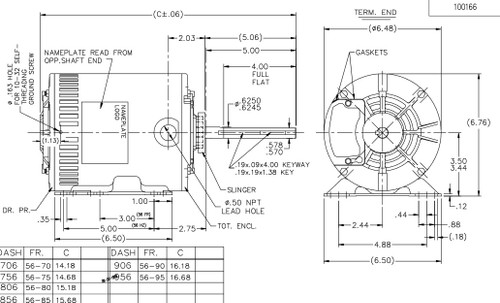

• Frame / Diameter: NEMA 56HZ Frame
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 5" length
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

The motor features a rigid base for stable mounting and includes automatic thermal protection to prevent overheating. It is suitable for both vertical and horizontal shaft orientations and is built with Class H insulation for enhanced durability in demanding environments.

Cross Reference

• Century H768

Warranty

1 Year Manufacturer Warranty
