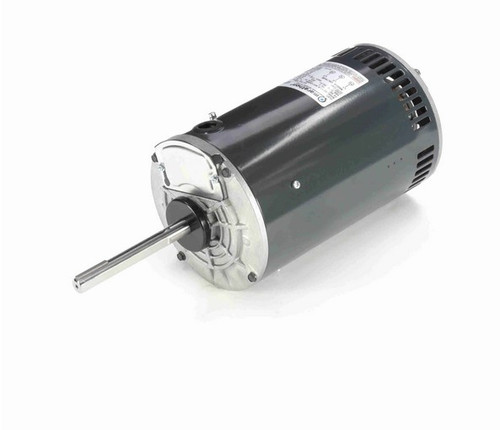

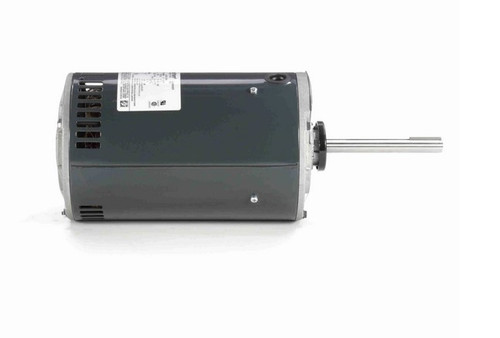

X526 Marathon 2 hp 3-phase 575V 1075 RPM OPAO 56Y Frame Condenser Fan Motor
(No reviews)
Write a Review
Write a Review
Marathon
X526 Marathon 2 hp 3-phase 575V 1075 RPM OPAO 56Y Frame Condenser Fan Motor
$618.93
$546.14
SKU
X526
UPC
7.23E+11
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
575V
Horsepower
2 HP
RPM
1075
Phase
Three Phase
Frame
56Y
Hertz
60 Hz
Amperage
2.7 Amps
Bearings
Ball Bearings
Insulation Class
Class H
- 2 hp 1075 RPM, 2.7 amps, 575 Volts 60 Hz, 3-Phase

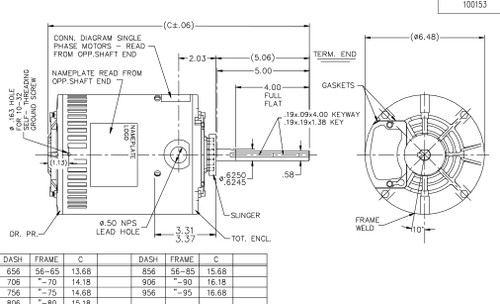

- NEMA 56Y Frame Keyed Shaft 5/8" Diameter x 5"
- Service Factor = 1.0, Thermal Protection = Automatic
- No Base, Reversible, Ball Bearings, Class H insulation
- 1 Year Manufacture Warranty
Condenser Fan Motors are used in air conditioning coolant condenser units usually found outdoors. Shaft may be vertical or horizontal. OPAO = Open Air-Over so motor must be in air-stream. 056T11O5309
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 575V |
| Horsepower | 2 HP |
| RPM | 1075 |
| Phase | Three Phase |
| Frame | 56Y |
| Hertz | 60 Hz |
| Amperage | 2.7 Amps |
| Bearings | Ball Bearings |
| Insulation Class | Class H |
