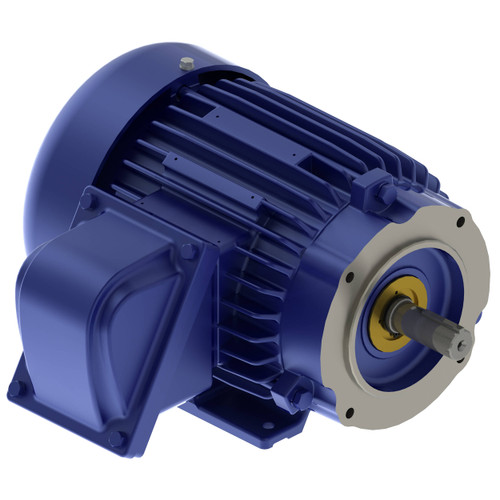

XP0016 TECO-Westinghouse 1 HP 1200 RPM 145T Frame 230/460V TEFC Cast Iron 3-Ph Exposion Proof Motor
XP0016 TECO-Westinghouse 1 HP 1200 RPM 145T Frame 230/460V TEFC Cast Iron 3-Ph Exposion Proof Motor
XP0016 TECO-Westinghouse 1 HP 1200 RPM 145T Frame 230/460V TEFC Cast Iron 3-Ph Exposion Proof Motor
XP0016 TECO-Westinghouse 1 HP 1200 RPM 145T Frame 230/460V TEFC Cast Iron 3-Ph Exposion Proof Motor

TECO WESTINGHOUSE

XP0016 TECO-Westinghouse 1 HP 1200 RPM 145T Frame 230/460V TEFC Cast Iron 3-Ph Exposion Proof Motor

(No reviews) Write a Review
$598.99
SKU XP0016
Shipping Calculated at Checkout
Voltage 230/460V
Horsepower 1 HP
RPM 1200
Phase Three Phase
Frame 145T
Enclosure TEFC
Hertz 60 Hz
Amperage 3.44/1.72 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class F
Rotation Reversible
Adding to cart… The item has been added
Description

TECO WESTINGHOUSE NEMA PREMIUM EXPLOSION PROOF MOTOR

  • 1 hp 1200 RPM, 1-Speed, 3.44/1.72 amps, 230/460 Volts 60 Hz. Three Phase
  • 145T Cast Iron Frame, Shaft: 7/8" x 2 1/8" with Key
  • Ball Bearing, Reversible Rotation, Overload Protector: Manual
  • Service Factor = 1.15, Insulation Class F
  • Explosion Proof: Class I Div. 1 Group C and D, Class II Groups E, F, and G.
  • 1 Year Manufacture Warranty

Explosion Proof Motor For Use Where Ever Explosive Gases or Grain Dust May Be Present. Totally Enclosed Fan Cooled (TEFC)

Specifications
Voltage 230/460V
Horsepower 1 HP
RPM 1200
Phase Three Phase
Frame 145T
Enclosure TEFC
Hertz 60 Hz
Amperage 3.44/1.72 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class F
Rotation Reversible
!
