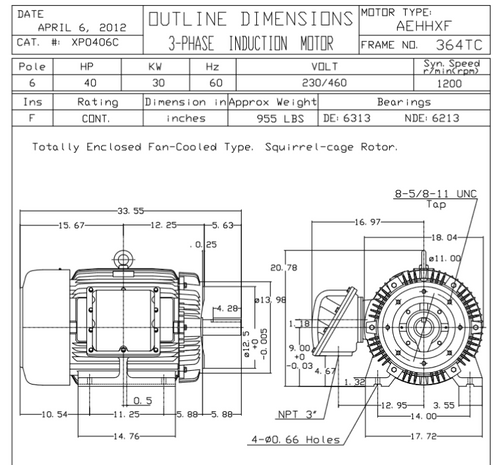

XP0406C TECO-Westinghouse 40 HP 1200 RPM 364TC Frame 230/460V TEFC Cast Iron 3-Ph Exposion Proof Motor
XP0406C TECO-Westinghouse 40 HP 1200 RPM 364TC Frame 230/460V TEFC Cast Iron 3-Ph Exposion Proof Motor
XP0406C TECO-Westinghouse 40 HP 1200 RPM 364TC Frame 230/460V TEFC Cast Iron 3-Ph Exposion Proof Motor
XP0406C TECO-Westinghouse 40 HP 1200 RPM 364TC Frame 230/460V TEFC Cast Iron 3-Ph Exposion Proof Motor

TECO WESTINGHOUSE

XP0406C TECO-Westinghouse 40 HP 1200 RPM 364TC Frame 230/460V TEFC Cast Iron 3-Ph Exposion Proof Motor

(No reviews) Write a Review
$7,562.54
SKU XP0406C
Shipping Calculated at Checkout
Voltage 230/460V
Horsepower 40 HP
RPM 1200
Phase Three Phase
Frame 364TC
Enclosure TEFC
Hertz 60 Hz
Amperage 92.6/46.3 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class F
Rotation Reversible
Mounting C-Face
Adding to cart… The item has been added
Description

TECO WESTINGHOUSE NEMA PREMIUM ROUND MOTOR

  • 40 hp 1200 RPM, 1-Speed, 92.6/46.3 amps, 230/460 Volts 60 Hz. Three Phase
  • 364TC Cast Iron Frame, Shaft: 2 3/8" x 5 5/8" with Key
  • Ball Bearing, Reversible Rotation, Overload Protector: Manual
  • Service Factor = 1.15, Insulation Class F
  • Explosion Proof: Class I Div. 1 Group C and D, Class II Groups E, F, and G.
  • 1 Year Manufacture Warranty

Explosion Proof Motor With C-Face and Base For Use Where Ever Explosive Gases or Grain Dust May Be Present. Totally Enclosed Fan Cooled (TEFC)

Specifications
Voltage 230/460V
Horsepower 40 HP
RPM 1200
Phase Three Phase
Frame 364TC
Enclosure TEFC
Hertz 60 Hz
Amperage 92.6/46.3 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class F
Rotation Reversible
Mounting C-Face
!
