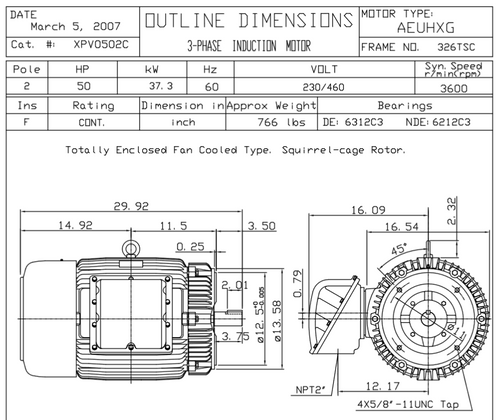

XPV0502C TECO-Westinghouse 50 HP 3600 RPM 324TSC Frame 230/460V TEFC Cast Iron 3-Ph Exposion Proof Motor
XPV0502C TECO-Westinghouse 50 HP 3600 RPM 324TSC Frame 230/460V TEFC Cast Iron 3-Ph Exposion Proof Motor
XPV0502C TECO-Westinghouse 50 HP 3600 RPM 324TSC Frame 230/460V TEFC Cast Iron 3-Ph Exposion Proof Motor
XPV0502C TECO-Westinghouse 50 HP 3600 RPM 324TSC Frame 230/460V TEFC Cast Iron 3-Ph Exposion Proof Motor

TECO WESTINGHOUSE

XPV0502C TECO-Westinghouse 50 HP 3600 RPM 324TSC Frame 230/460V TEFC Cast Iron 3-Ph Exposion Proof Motor

(No reviews) Write a Review
$5,741.80
SKU XPV0502C
Shipping Calculated at Checkout
Voltage 230/460V
Horsepower 50 HP
RPM 3600
Phase Three Phase
Frame 324TSC
Enclosure TEFC
Hertz 60 Hz
Amperage 110/55.0 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class F
Rotation Reversible
Mounting C-Face
Adding to cart… The item has been added
Description

TECO WESTINGHOUSE NEMA PREMIUM ROUND MOTOR

  • 50 hp 3600 RPM, 1-Speed, 110/55.0 amps, 230/460 Volts 60 Hz. Three Phase
  • 326TSC Cast Iron Frame, Shaft: 1 7/8" x 3 1/2" with Key
  • Ball Bearing, Reversible Rotation, Overload Protector: Manual
  • Service Factor = 1.15, Insulation Class F
  • Explosion Proof: Class I Div. 1 Group C and D, Class II Groups E, F, and G.
  • 1 Year Manufacture Warranty

Explosion Proof C-Face Motor For Use Where Ever Explosive Gases or Grain Dust May Be Present. Totally Enclosed Fan Cooled (TEFC)

Specifications
Voltage 230/460V
Horsepower 50 HP
RPM 3600
Phase Three Phase
Frame 324TSC
Enclosure TEFC
Hertz 60 Hz
Amperage 110/55.0 Amps
Bearings Ball Bearings
Speeds 1-Speed
Insulation Class Class F
Rotation Reversible
Mounting C-Face
!
