YC25P2B Nidec 25 hp 1800 RPM 284T Frame (Rigid Base) 230/460V TEFC 3-Phase Div 1 Hazardous Duty Motor
YC25P2B Nidec 25 hp 1800 RPM 284T Frame (Rigid Base) 230/460V TEFC 3-Phase Div 1 Hazardous Duty Motor
YC25P2B Nidec 25 hp 1800 RPM 284T Frame (Rigid Base) 230/460V TEFC 3-Phase Div 1 Hazardous Duty Motor
YC25P2B Nidec 25 hp 1800 RPM 284T Frame (Rigid Base) 230/460V TEFC 3-Phase Div 1 Hazardous Duty Motor

Nidec

YC25P2B Nidec 25 hp 1800 RPM 284T Frame (Rigid Base) 230/460V TEFC 3-Phase Div 1 Hazardous Duty Motor

(No reviews) Write a Review
$4,629.90
$4,134.14
SKU YC25P2B
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 25 HP
RPM 1800
Phase Three Phase
Frame 284T
Enclosure TEFC
Hertz 60 Hz
Amperage 58.0/28.9 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 25 hp 1800 RPM, 58.0/28.9 amps 230/460 Volts 60 Hz Three Phase Motor

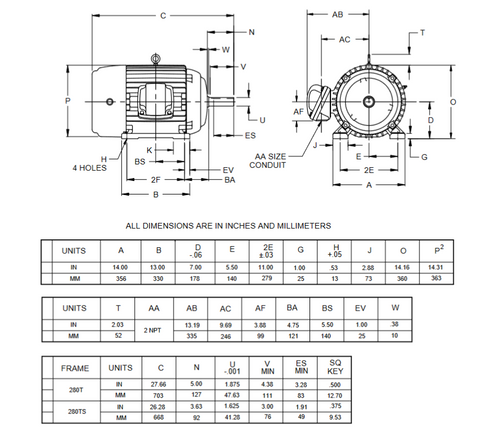

  • NEMA 284T Cast Iron frame Keyed Shaft 1 7/8" Diameter x 4 5/8"
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

General purpose, Corrosion resistant, Division 1 hazardous location motor for class 1 group D. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. FE80

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 25 HP
RPM 1800
Phase Three Phase
Frame 284T
Enclosure TEFC
Hertz 60 Hz
Amperage 58.0/28.9 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
