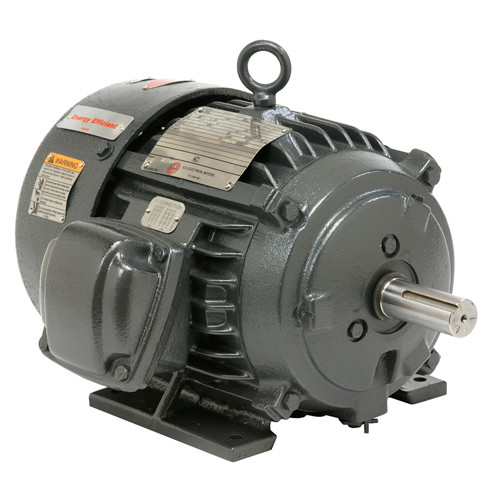

YC3P2B Nidec 3 hp 1800 RPM 182T Frame (Rigid Base) 230/460V TEFC 3-Phase Div 1 Hazardous Duty Motor
YC3P2B Nidec 3 hp 1800 RPM 182T Frame (Rigid Base) 230/460V TEFC 3-Phase Div 1 Hazardous Duty Motor
YC3P2B Nidec 3 hp 1800 RPM 182T Frame (Rigid Base) 230/460V TEFC 3-Phase Div 1 Hazardous Duty Motor
YC3P2B Nidec 3 hp 1800 RPM 182T Frame (Rigid Base) 230/460V TEFC 3-Phase Div 1 Hazardous Duty Motor

Nidec

YC3P2B Nidec 3 hp 1800 RPM 182T Frame (Rigid Base) 230/460V TEFC 3-Phase Div 1 Hazardous Duty Motor

(No reviews) Write a Review
$1,384.60
$1,235.79
SKU YC3P2B
Shipping Calculated at Checkout
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 3 HP
RPM 1800
Phase Three Phase
Frame 182T
Enclosure TEFC
Hertz 60 Hz
Amperage 7.7/3.8 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 3 hp 1800 RPM, 7.7/3.8 amps  230/460 Volts 60 Hz Three Phase Motor
  • NEMA 182T Cast Iron frame Keyed Shaft 1 1/8" Diameter x 2 3/4"
  • Service Factor: 1.15, Overload protection = None
  • Rigid Base Mount, Ball Bearings, Class F Insulation, Reversible
  • 1 Year Manufacture Warranty

General purpose, Corrosion resistant, Division 1 hazardous location motor for class 1 group D.  Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. FG57

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 230/460V
Horsepower 3 HP
RPM 1800
Phase Three Phase
Frame 182T
Enclosure TEFC
Hertz 60 Hz
Amperage 7.7/3.8 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
!
