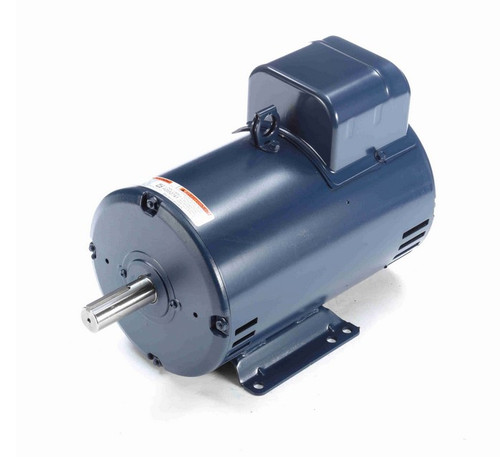

Z305A Marathon 5 HP 3600 RPM 184TZ Frame 230V DPAO Crop Dryer Motor
(No reviews)
Write a Review
Write a Review
Marathon
Z305A Marathon 5 HP 3600 RPM 184TZ Frame 230V DPAO Crop Dryer Motor
$1,006.02
$861.35
SKU
MZ305A
UPC
7.23E+11
Shipping
Calculated at Checkout
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
LIMITED TIME DISCOUNT
Voltage
230V
Horsepower
5 HP
RPM
3600
Phase
Single Phase
Frame
184TZ
Hertz
60 Hz
Amperage
27.2 Amps
Bearings
Ball Bearings
Insulation Class
Class F
Rotation
Reversible
Mounting
Rigid Base
- 5 hp 1800 RPM, 27.2 amps, 230 Volts 60 Hz. Capacitor Start / Induction Run Phase

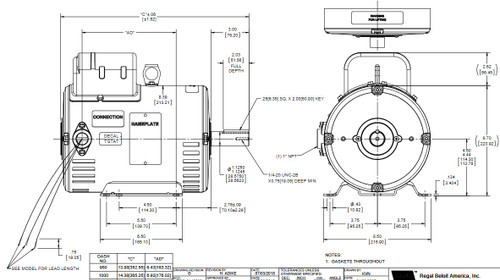

- NEMA 184TZ Frame, DPAO, Shaft 1 1/8" Diameter x 2 3/4"
- Service Factor = 1.4, Overload Protection: Auto
- Rigid Base, Reversible Rotation, Ball Bearings, Class F Insulation
- 1 Year Manufacture Warranty
Single phase motor designed for belt drive fans for crop drying purposes, DPAO = Drip Proof Air-Over requires motor be in air stream, 184TCDW7615
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | LIMITED TIME DISCOUNT |
| Voltage | 230V |
| Horsepower | 5 HP |
| RPM | 3600 |
| Phase | Single Phase |
| Frame | 184TZ |
| Hertz | 60 Hz |
| Amperage | 27.2 Amps |
| Bearings | Ball Bearings |
| Insulation Class | Class F |
| Rotation | Reversible |
| Mounting | Rigid Base |
