C297 Marathon 1 1/2 hp 1800 RPM 145T Frame 115/208-230V Totally Enclosed Marathon Electric Motor

C297 Marathon 1 1/2 hp 1800 RPM 145T Frame 115/208-230V Totally Enclosed Marathon Electric Motor

This Marathon 1 1/2 horsepower, 1800 RPM single-phase electric motor is designed for general-purpose applications requiring a capacitor start/run motor. It replaces Leeson C145K17FB3J (120026.00) and features a totally enclosed fan-cooled (TEFC) design for reliable operation in various environments.

Key Specifications

• Horsepower: 1 1/2 hp
• RPM: 1800
• Voltage: 115/208-230V, 60 Hz
• Amperage: 14.5/7.3-7.1 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)

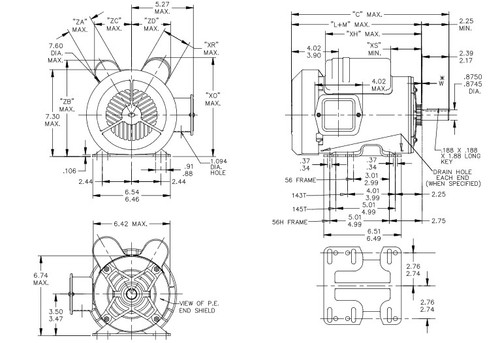

• Frame / Diameter: NEMA 145T
• Shaft Dimensions: 7/8" Diameter x 2 1/4" Length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a capacitor start/run design with a service factor of 1.15 and is rigid base mounted for stable installation. The keyed shaft ensures secure coupling, and the motor includes Class B insulation for durability. Wiring diagrams are provided on the motor nameplate to facilitate proper electrical connections.

Cross Reference

• Leeson C145K17FB3J, 120026.00

Warranty

1 Year Manufacturer Warranty
