sale
Marathon
I221 Marathon 2 hp 3600 RPM 145T Frame 115/208-230V Totally Enclosed Marathon Electric Motor
(No reviews)
Write a Review
Write a Review
Marathon
I221 Marathon 2 hp 3600 RPM 145T Frame 115/208-230V Totally Enclosed Marathon Electric Motor
$546.37
$482.43
SKU
I221
Shipping
Free Shipping
Compliance Tab
/content/product_tabs/p65warnings.html
ON SALE
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage
115/208/230V
Horsepower
2 HP
RPM
3600
Phase
Single Phase
Frame
145T
Enclosure
TEFC
Hertz
60 Hz
Amperage
9.0 Amps
Bearings
Ball Bearings
Service Factor
1.15
Insulation Class
Class B
Mounting
Rigid Base

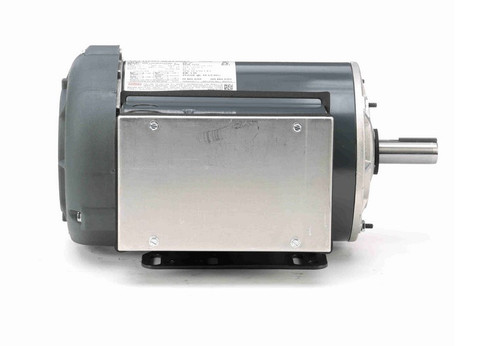

I221 Marathon 2 hp 3600 RPM 145T Frame 115/208-230V Totally Enclosed Marathon Electric Motor
This Marathon 2 hp single-phase electric motor operates at 3600 RPM and is designed for general-purpose applications. It replaces Leeson C145C34FB1J (120036.00) and features a totally enclosed fan-cooled (TEFC) design for reliable performance in various environments.
Key Specifications
- Horsepower: 2 hp
- RPM: 3600
- Voltage: 115/208-230 V
- Amperage: 18.0/10.0-9.0 A
- Enclosure: Totally Enclosed Fan Cooled (TEFC)
- Frame / Diameter: NEMA 145T
- Shaft Dimensions: Keyed shaft, 7/8" diameter x 2 1/4" length
- Rotation: Reversible
- Bearings: Ball bearings
Product Features & Fitment
This motor features a capacitor start/run design with a service factor of 1.15 and Class B insulation. It mounts on a rigid base and includes a wiring diagram on the motor nameplate for ease of installation. Overload protection is not included.
Cross Reference
- Leeson C145C34FB1J, 120036.00
Warranty
1 Year Manufacturer Warranty
1 Year Manufacturer Warranty
| Compliance Tab | /content/product_tabs/p65warnings.html |
|---|---|
| ON SALE | DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM |
| Voltage | 115/208/230V |
| Horsepower | 2 HP |
| RPM | 3600 |
| Phase | Single Phase |
| Frame | 145T |
| Enclosure | TEFC |
| Hertz | 60 Hz |
| Amperage | 9.0 Amps |
| Bearings | Ball Bearings |
| Service Factor | 1.15 |
| Insulation Class | Class B |
| Mounting | Rigid Base |
- Leeson C145C34FB1J, 120036.00
