G359 Marathon 1 hp 3600 RPM 56 Frame 115/208-230V Totally Enclosed Marathon Electric Motor

G359 Marathon 1 hp 3600 RPM 56 Frame 115/208-230V Totally Enclosed Marathon Electric Motor

The G359 Marathon electric motor is a general-purpose, single-phase motor designed for a variety of industrial and commercial applications. It replaces Leeson C6C34FB5G and 110059.00 models, providing reliable performance with a totally enclosed fan-cooled (TEFC) design.

Key Specifications

• Horsepower: 1 hp
• RPM: 3600
• Voltage: 115/208-230 V, 60 Hz
• Amperage: 12.4/6.7-6.4 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 56 Frame

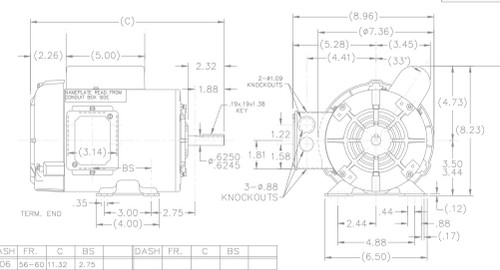

• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This capacitor start motor features a rigid base mount for stable installation and is built with Class B insulation for durability. The wiring diagram is conveniently located on the motor nameplate to assist with proper electrical connections. Designed without overload protection, it is suitable for applications requiring a service factor of 1.15.

Cross Reference

• Leeson C6C34FB5G, 110059.00

Warranty

1 Year Manufacturer Warranty
