TO107 Century 1-1/2 hp 1800 RPM 3-Phase 145T Frame ODP (rigid base) 200V Century Motor # TO107

TO107 Century 1-1/2 hp 1800 RPM 3-Phase 145T Frame ODP (Rigid Base) 200V Century Motor

This Century TO107 motor is a general-purpose, three-phase electric motor designed for industrial applications requiring reliable performance. It is suitable for replacing similar 1-1/2 hp motors with a rigid base mount and keyed shaft.

Key Specifications

• Horsepower: 1-1/2 hp
• RPM: 1800
• Voltage: 200 V
• Amperage: 4.5 A
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 145T

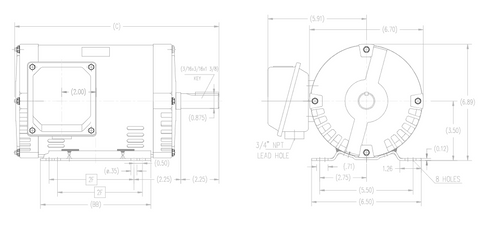

• Shaft Dimensions: 7/8" Diameter x 2 1/4" Length, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a rigid base with dual frame mounting holes for secure installation. It includes a keyed shaft for positive drive connection and is equipped with Class B insulation. The wiring diagram is located on the motor nameplate for easy reference during installation. This motor meets NEMA premium efficiency standards and is designed for general-purpose use without overload protection.

Warranty

1 Year Manufacturer Warranty
