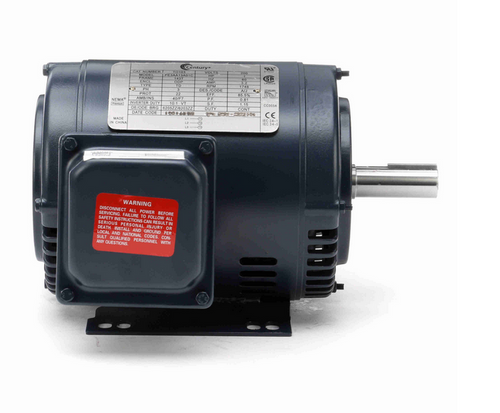

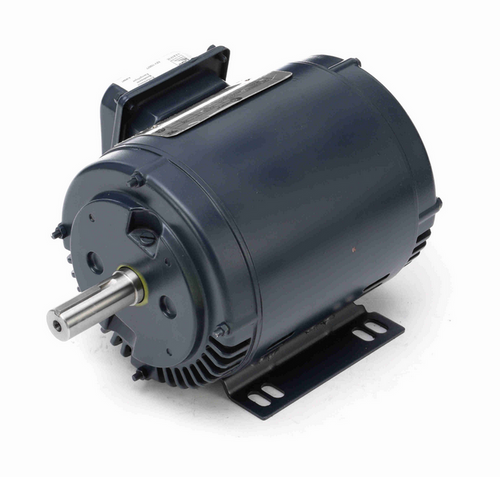

TO103 Century 1 hp 1800 RPM 3-Phase 143T Frame ODP (rigid base) 200V Century Motor # TO103

TO103 Century 1 hp 1800 RPM 3-Phase 143T Frame ODP (rigid base) 200V Century Motor

This Century TO103 motor is a general-purpose, three-phase electric motor designed for industrial applications requiring reliable performance. It is suitable for replacing similar 1 hp motors with a rigid base mount and keyed shaft.

Key Specifications

• Horsepower: 1 hp
• RPM: 1800
• Voltage: 200 V
• Amperage: 3.2 A
• Enclosure: Open Drip Proof (ODP)

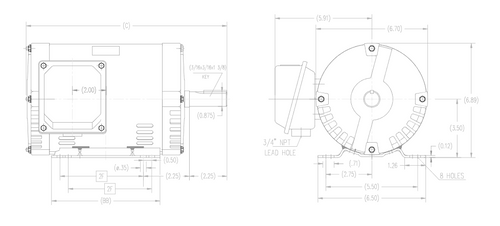

• Frame / Diameter: NEMA 143T
• Shaft Dimensions: 7/8" diameter x 2 1/4" length, keyed
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a rigid base with dual frame mounting holes for secure installation. It includes a keyed shaft for positive coupling and is reversible to accommodate different rotation requirements. The wiring diagram is located on the motor nameplate for easy reference during installation. This motor meets NEMA premium efficiency standards and utilizes Class B insulation for durability.

Warranty

1 Year Manufacturer Warranty
