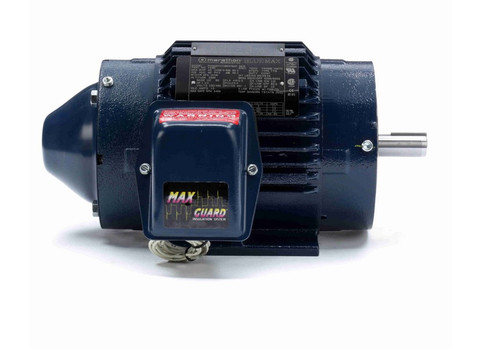

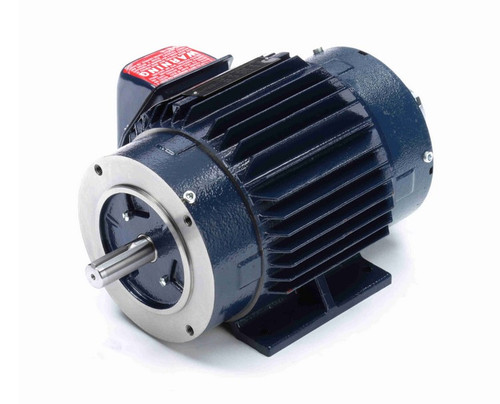

Y590 Marathon 1 1/2 hp 1800 RPM 3-Phase 145TC Frame TENV (rigid base) 230/460V Marathon Motor

SKU:
Y590
Weight:
65.00 LBS
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES AND FREE GROUND SHIPPING
Was: $1,134.80
Now: $1,005.60
Adding to cart… The item has been added
  • 1 1/2 hp 1800 RPM, 4.6/2.3 amps 230/460 Volts 60 Hz 3-Phase. Encoder Ready
  • NEMA 145TC Cast Iron frame, C-face, Keyed Shaft 7/8" Diameter x 2 1/4"
  • Service Factor: 1.0, Overload protection = None
  • Rigid Base, Reversible, Ball Bearings, Class H Insulation
  • 1 Year Manufacture Warranty

Inverter (Vector) duty three phase electric motor with a C-face mount. 1000:1 constant torque. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TENV = Totally Enclosed Non-Ventilated. 143THTN8028
