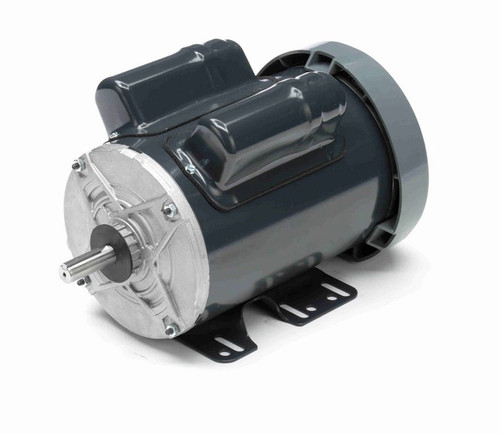

G1376 Marathon 1 1/2 hp 1800 RPM 56 Frame 115/208-230V Totally Enclosed Marathon Electric Motor
G1376 Marathon 1 1/2 hp 1800 RPM 56 Frame 115/208-230V Totally Enclosed Marathon Electric Motor
G1376 Marathon 1 1/2 hp 1800 RPM 56 Frame 115/208-230V Totally Enclosed Marathon Electric Motor
G1376 Marathon 1 1/2 hp 1800 RPM 56 Frame 115/208-230V Totally Enclosed Marathon Electric Motor
G1376 Marathon 1 1/2 hp 1800 RPM 56 Frame 115/208-230V Totally Enclosed Marathon Electric Motor
G1376 Marathon 1 1/2 hp 1800 RPM 56 Frame 115/208-230V Totally Enclosed Marathon Electric Motor

Marathon

G1376 Marathon 1 1/2 hp 1800 RPM 56 Frame 115/208-230V Totally Enclosed Marathon Electric Motor

(No reviews) Write a Review
$724.50
$637.33
SKU MG1376
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115/208/230V
Horsepower 1/2 HP
RPM 1800
Phase Single Phase
Frame 56
Enclosure TEFC
Hertz 60 Hz
Amperage 7.1 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class B
Mounting Rigid Base
Adding to cart… The item has been added
Description
  • 1 1/2 hp 1800 RPM, 14.5/7.3-7.1 amps 115/208-230 Volts 60hz. Capacitor Start/Run Motor
  • NEMA 56 Frame Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.15, Overload protection = None
  • Reversible, Rigid Base Mount, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

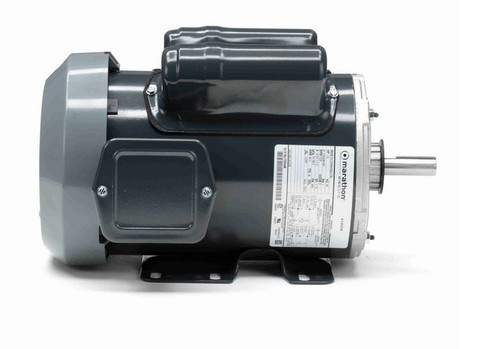

General purpose motor can be used for many applications requiring a single phase electric motor. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled,
Marathon # 5KCR48WN0273. Replaces Leeson 110253.00, C6K17FB9J

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 115/208/230V
Horsepower 1/2 HP
RPM 1800
Phase Single Phase
Frame 56
Enclosure TEFC
Hertz 60 Hz
Amperage 7.1 Amps
Bearings Ball Bearings
Service Factor 1.15
Insulation Class Class B
Mounting Rigid Base
!
