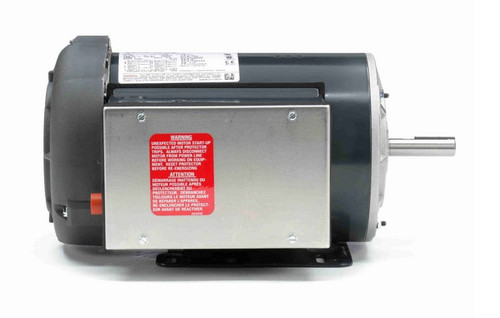

G378 Marathon 1 1/2 hp 1800 RPM 56 Frame 115/208-230V Totally Enclosed Marathon Electric Motor

G378 Marathon 1 1/2 hp 1800 RPM 56 Frame 115/208-230V Totally Enclosed Marathon Electric Motor

This Marathon 1 1/2 horsepower electric motor operates at 1800 RPM and is designed for general-purpose single-phase applications. It replaces Leeson M6K17FB32G (part number 113333.00) and is suitable for various industrial and HVAC uses requiring a reliable, totally enclosed fan-cooled motor.

Key Specifications

• Horsepower: 1 1/2 hp
• RPM: 1800
• Voltage: 115/208-230 V, 60 Hz
• Amperage: 15.2/8.2-7.6 A
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 56 Frame
• Shaft Dimensions: Keyed shaft, 5/8" diameter x 1 7/8" length
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

This motor features a capacitor start/run design with a service factor of 1.15 and manual overload protection. It mounts on a rigid base and includes a wiring diagram on the motor nameplate for easy installation. The motor’s totally enclosed fan-cooled enclosure ensures durability in demanding environments.

Cross Reference

• Leeson M6K17FB32G, 113333.00

Warranty

1 Year Manufacturer Warranty
