3402 Nidec | Carrier Condenser Motor K055SWG7925013B 1/10 hp, 1100 RPM, 208-230V by US Motors
3402 Nidec | Carrier Condenser Motor K055SWG7925013B 1/10 hp, 1100 RPM, 208-230V by US Motors
3402 Nidec | Carrier Condenser Motor K055SWG7925013B 1/10 hp, 1100 RPM, 208-230V by US Motors
3402 Nidec | Carrier Condenser Motor K055SWG7925013B 1/10 hp, 1100 RPM, 208-230V by US Motors

Nidec

3402 Nidec | Carrier Condenser Motor K055SWG7925013B 1/10 hp, 1100 RPM, 208-230V by US Motors

(No reviews) Write a Review
$223.10
$179.95
SKU 3402
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230V
Horsepower 1/10 HP
RPM 1100
Enclosure TEAO
Amperage 0.8 Amps
Bearings Sleeve Bearings
Speeds 1-Speed
Adding to cart… The item has been added
Description

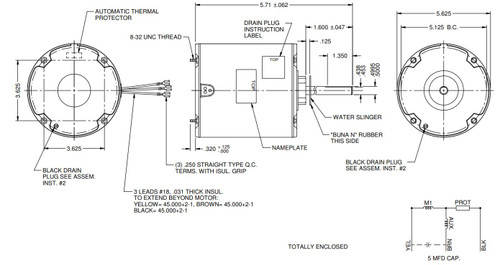

  • 1/10 hp, 1100 RPM, 0.8 amps, 208-230V, 1-Speed
  • Rotation = CW lead end; Shaft 1/2" x 1.6"; 40° Ambient Temp
  • Totally Enclosed Air Over (TEAO); Sleeve Bearings; Body diameter 5-5/8"
  • Motor case length 5"; Stud Pattern 3-5/8"x 3-5/8"
  • 5MFD 370V Capacitor REQUIRED (Our Part #5DV)
  • 1 Year Manufacture Warranty.

Suggested after market replacement for Carrier K055SWG7925013B, HC33G233, 5KCP39GBS069S, K055SWG7925013B

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE LIMITED TIME DISCOUNT
Voltage 208/230V
Horsepower 1/10 HP
RPM 1100
Enclosure TEAO
Amperage 0.8 Amps
Bearings Sleeve Bearings
Speeds 1-Speed
!
