3401 Nidec | Carrier Condenser Motor K055SWF7924013B 1/12 hp, 1100 RPM, 208-230V by US Motors

3401 Nidec | Carrier Condenser Motor K055SWF7924013B 1/12 hp, 1100 RPM, 208-230V by US Motors

This 1/12 horsepower condenser motor is a reliable aftermarket replacement designed for Carrier HVAC systems. It is compatible with models such as Carrier HC31GE232, 5KCP39BGS162S, K055SWF7924013B, OCA10086, and Dayton 115W74, ensuring efficient condenser operation.

Key Specifications

• Horsepower: 1/12 hp
• RPM: 1100
• Voltage: 208-230V
• Amperage: 1.7 amps
• Enclosure: Totally Enclosed Air Over (TEAO)

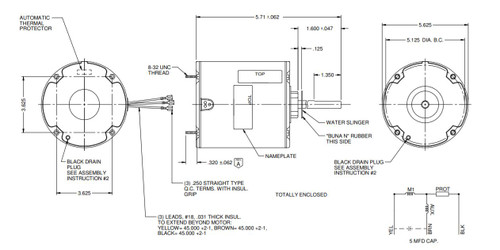

• Frame / Diameter: 5-5/8" body diameter
• Shaft Dimensions: 1/2" diameter x 1.6" length
• Rotation: Clockwise (CW) lead end
• Bearings: Sleeve bearings

Product Features & Fitment

The motor features a 1-speed design suitable for condenser applications with a 40° ambient temperature rating. It mounts using a stud pattern of 3-5/8" x 3-5/8" and has a motor case length of 5". Installation requires a 5 MFD 370V capacitor (part #5DV) for proper operation.

Cross Reference

• Carrier HC31GE232, 5KCP39BGS162S, K055SWF7924013B. OCA10086, Dayton 115W74

Warranty

1 Year Manufacturer Warranty
