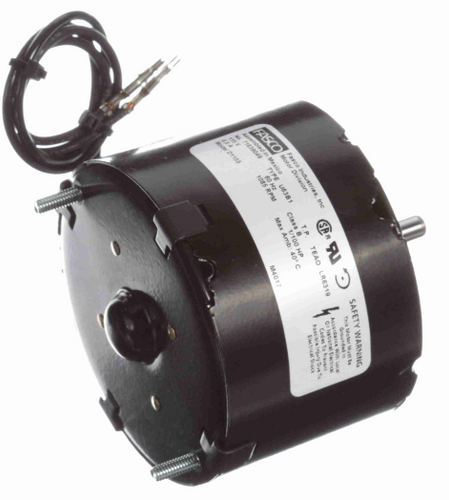

Fasco D1155 Motor | 1/100 hp 1085 RPM CCW 3.3" Dia 115V (Thermador Tradewinds)

Fasco D1155 Motor | 1/100 hp 1085 RPM CCW 3.3" Dia 115V (Thermador Tradewinds)

The Fasco D1155 is a compact, reliable motor designed as a direct replacement for Thermador Tradewinds models and compatible units. It is ideal for HVAC applications requiring precise, low-horsepower performance.

Key Specifications

• Horsepower: 1/100 hp
• RPM: 1085
• Voltage: 115 V
• Amperage: 0.5 A
• Frame / Diameter: 3.3" diameter
• Shaft Dimensions: 1/4" diameter x 1" length
• Rotation: Counterclockwise shaft end (CCWSE)
• Bearings: Sleeve bearings

Product Features & Fitment

This motor features a stud mount with a 2.85" bolt circle and two mounting studs located on the backside for secure installation. The motor length, excluding the shaft, measures 2 1/4". It serves as a suggested replacement for Thermador (Tradewinds) part numbers 17-09-679, VQT-90, JA2M087R, JA2M087, 7163-9049, as well as Dayton 48GN57.

Cross Reference

• Thermador (Tradewinds) 17-09-679, VQT-90, JA2M087R, JA2M087, 7163-9049. Dayton 48GN57

Warranty

1 Year Manufacturer Warranty
