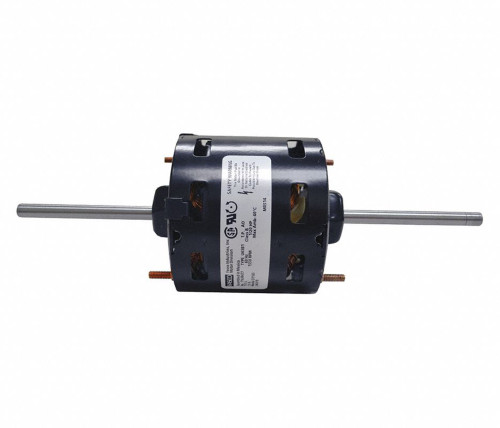

Fasco D1165 Motor | 1/20 hp 1550 RPM 3.3" Dia 115V (Thermador Tradewinds)

SKU:: D1165
UPC:
Availability:: IN STOCK
Weight:: 4.00 LBS
Width:: 10.00 (in)
Height:: 7.00 (in)
Depth:: 5.00 (in)
Shipping:: Free Shipping
ON SALE:: DISCOUNT & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:: 115V
Horsepower:: 1/20 HP
RPM:: 1550
Hertz:: 60 Hz
Amperage:: 1.9 Amps
Bearings:: Sleeve Bearings
Mounting:: Stud

Current Stock:

Was: $154.33

Now: $141.95

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

Fasco D1165 Motor | 1/20 hp 1550 RPM 3.3" Dia 115V (Thermador Tradewinds)

The Fasco D1165 is a 1/20 horsepower motor designed as a direct replacement for Thermador Tradewinds models. It is compatible with Thermador (Trade Wind) part numbers 19-09-215, JA2N141, JA2N183, JA2N250, JA2P156, and also replaces AO Smith A01165, Century 324, and Dayton 48GN63 motors.

Key Specifications

Horsepower: 1/20 hp
RPM: 1550
Voltage: 115V
Amperage: 1.9 amps
Frame / Diameter: 3.3" diameter
Shaft Dimensions: Double shaft, 3 1/2" x 5/16" x 3 1/2"
Mounting: Stud mount with 2.85" bolt circle
Bearings: Sleeve bearings

Product Features & Fitment

This motor features a stud mount design with a 2.85" bolt circle for secure installation. The motor length excluding the shaft measures 3 inches. It includes a double shaft configuration suitable for applications requiring dual shaft ends. Sleeve bearings provide reliable operation in HVAC and industrial motor applications.
