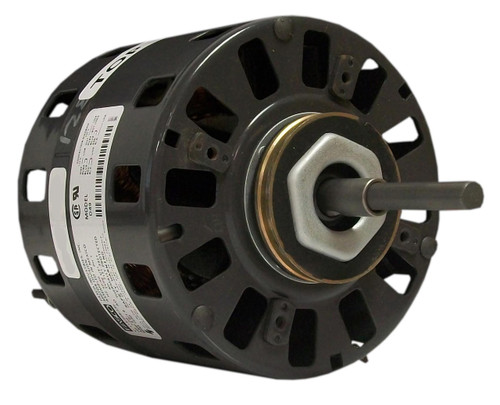

Fasco D493 Motor | 1/15 hp 1050 RPM CCW 5" Diameter 115/208-230 Volts

Fasco D493 Motor | 1/15 hp 1050 RPM CCW 5" Diameter 115/208-230 Volts

The Fasco D493 is a shaded pole refrigeration fan motor designed for reliable operation in HVAC and refrigeration applications. It serves as a direct replacement for various G.E., Emerson, Universal, and Franklin refrigeration motors, including GE frame 21 and 29 models.

Key Specifications

• Horsepower: 1/15 hp
• RPM: 1050
• Voltage: 115/230 Volts, 60 Hz
• Amperage: 3.4/1.7 Amps
• Frame / Diameter: 5" Diameter
• Shaft Dimensions: 3/8" diameter x 3 1/8" length (includes 3/8" to 1/2" shaft bushing)
• Rotation: Counterclockwise (CCWSE)
• Bearings: Sleeve bearings
• Enclosure: Open ventilation, self-cooled

Product Features & Fitment

This motor features a mechanically reversible design and is suitable for air-over applications, including operation at 50 Hz. It includes an adapter bushing to convert the shaft from 3/8" to 1/2" diameter for versatile mounting options. The motor is designed with weld nuts on a 3.5" bolt center for stud mounting, and extended hubs with rubber rings allow for secure base mounting. It is UL recognized and CSA certified for safety and reliability.

Cross Reference

• 2213

Warranty

1 Year Manufacturer Warranty
