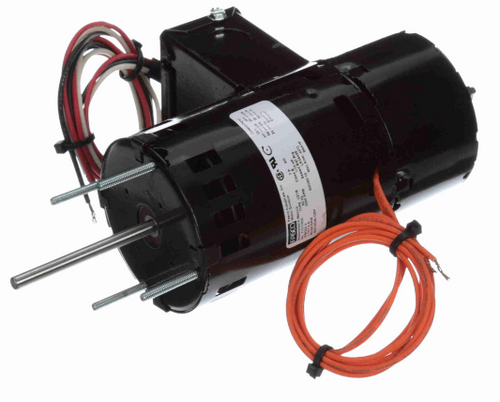

Fasco D458 Motor | 1/15 hp 3000 RPM CW 3.3" Diameter 208-230 Volts (Carrier)

SKU:: D458
UPC:: 6.63E+11
Availability:: IN STOCK
Weight:: 5.00 LBS
Width:: 10.00 (in)
Height:: 7.00 (in)
Depth:: 5.00 (in)
Shipping:: Free Shipping
ON SALE:: DISCOUNT & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:: 208-230V
Horsepower:: 1/15 HP
RPM:: 3000
Hertz:: 60 Hz
Amperage:: 1.0 Amps
Bearings:: Ball Bearings
Mounting:: Stud Mount

Current Stock:

Was: $301.88

Now: $287.16

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

Fasco D458 Motor | 1/15 hp 3000 RPM CW 3.3" Diameter 208-230 Volts (Carrier)

The Fasco D458 is a reliable draft booster and flue exhaust motor designed to replace Carrier HC24AU600 and Dayton 48GP01 models. It is ideal for HVAC applications requiring a compact, efficient motor with clockwise shaft rotation.

Key Specifications

Horsepower: 1/15 hp
RPM: 3000
Voltage: 208-230 Volts, 60 Hz
Amperage: 1.0 amp
Frame / Diameter: 3.3" diameter
Shaft Dimensions: 1/4" diameter x 2 3/4" length
Rotation: Clockwise (CWSE)
Bearings: Ball bearings

Product Features & Fitment

This motor features a stud mount design for secure installation and includes a centrifugal switch for reliable starting. The motor length excluding the shaft measures 6 1/2 inches, making it suitable for tight spaces in HVAC systems.
