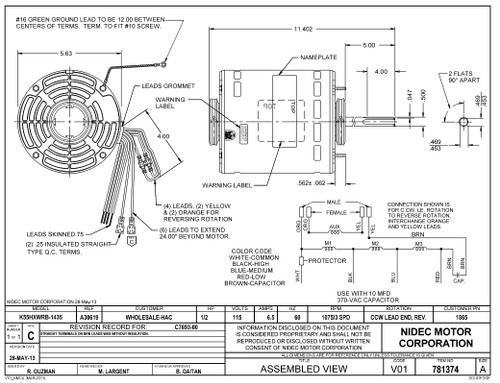

1865 Nidec | 1/2 hp 1075 RPM 3-Speed 115V; 5.6" Blower Motor

1865 Nidec | 1/2 hp 1075 RPM 3-Speed 115V; 5.6" Blower Motor

This 1/2 horsepower blower motor is designed for HVAC applications requiring a reliable, three-speed motor replacement. It features a reversible rotation and is suitable for continuous duty in open air environments.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1075
• Voltage: 115V
• Amperage: 6.5 amps
• Enclosure: Open Air Over
• Frame / Diameter: 5.6" diameter, 6.15" motor case length
• Shaft Dimensions: 1/2" x 5"
• Rotation: Reversible
• Bearings: Sleeve Bearings

Product Features & Fitment

This motor includes a resilient ring mount for secure installation and requires a 10MFD 370V capacitor (Part #10DV) for operation. It is a permanent split capacitor motor with automatic overload protection, Class B insulation, and is rated for 40°C ambient temperature. The motor comes with 24" leads and operates at 60 Hertz frequency.

Warranty

1 Year Manufacturer Warranty
