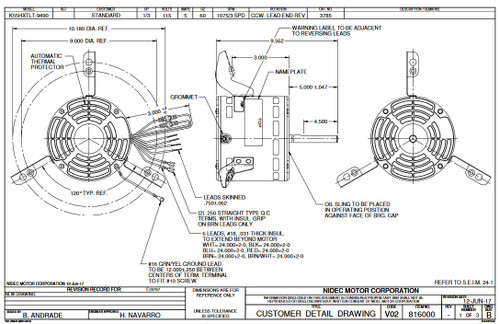

3785 Nidec | 1/3 hp 1075 RPM 3-Speed 115V; 5.6" Blower Motor

3785 Nidec | 1/3 hp 1075 RPM 3-Speed 115V; 5.6" Blower Motor

This Nidec 3785 blower motor is a 1/3 horsepower, 3-speed motor designed for HVAC applications requiring reliable airflow. It serves as a direct replacement for compatible blower assemblies, providing efficient and continuous operation.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1075
• Voltage: 115V
• Amperage: 5.0 amps
• Enclosure: Open Air Over Enclosure
• Frame / Diameter: 5.6" diameter, 4.56" motor case length
• Shaft Dimensions: 0.5" diameter x 5.0" length
• Rotation: Reversible
• Bearings: Sleeve Bearings

Product Features & Fitment

This motor features a permanent split capacitor design with automatic overload protection, suitable for continuous duty in ambient temperatures up to 40°C. It includes a flex bracket mount for versatile installation and requires a 7.5 MFD capacitor (part #7.5DV) for proper operation. The motor comes with 24" leads and operates at 60 Hz frequency.

Warranty

1 Year Manufacturer Warranty
