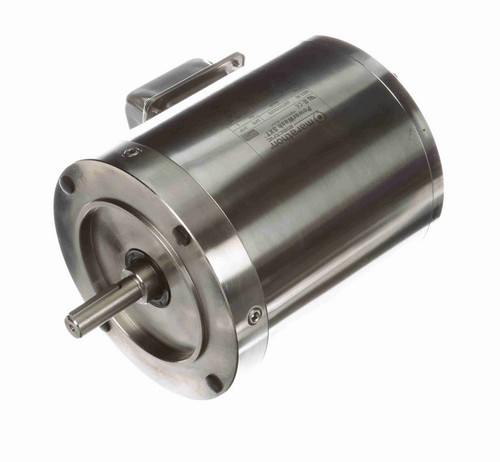

N426 Marathon 1/2 hp 1200 RPM 3-Phase 56C Frame TENV (no base) 208-230/460V Marathon Motor

N426 Marathon 1/2 hp 1200 RPM 3-Phase 56C Frame TENV (no base) 208-230/460V Marathon Motor

SKU:
N426
Weight:
33.00 LBS
Width:
10.00 (in)
Height:
10.00 (in)
Depth:
13.00 (in)
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:
208-230/460V
Horsepower:
1/2 HP
RPM:
1200
Phase:
Three Phase
Frame:
56C Frame
Enclosure:
TENV
Hertz:
60 Hz
Amperage:
2.0/1.0 Amps
Bearings:
Ball Bearings
Service Factor:
1.15
Insulation Class:
Class F
Mounting:
C-Face
Was: $568.68
Now: $497.84
Adding to cart… The item has been added
  • 1/2 hp 1200 RPM, 2.1-2.0/1.0 amps 208-230/460 Volts 60hz. Three Phase
  • NEMA 56C frame, C-face, Stainless Steel Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.15, Overload protection = None
  • No Base, Reversible, Ball Bearings, Class F Insulation
  • 1 Year Manufacture Warranty

Stainless Steel wash-down motors are use in applications involving challenging caustic environments. This is a single phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TENV = Totally Enclosed Non-Ventilated. 056T11VD5378

!
