G578 Marathon 1/2 hp 1200 RPM 56C Frame TEFC 115/208-230V Marathon Electric Motor

• 1/2 hp 1200 RPM, 9.6/4.7-4.8 amps 115/208-230 Volts 60hz. Capacitor Start Capacitor Run Motor

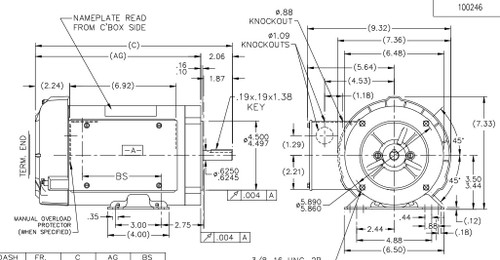

• NEMA 56C frame, C-face, Keyed Shaft 5/8" Diameter x 1 7/8"
• Service Factor: 1.15, Overload protection = None
• Removable Base, Reversible, Ball Bearings, Class B Insulation
• 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. TEFC = Totally Enclosed Fan Cooled. 056B11F5303
