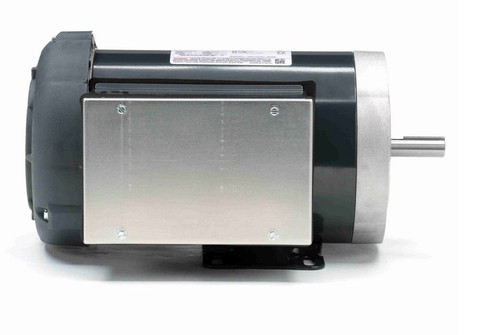

G579 Marathon 3/4 hp 1200 RPM 56C Frame TEFC 115/208-230V Marathon Electric Motor

G579 Marathon 3/4 hp 1200 RPM 56C Frame TEFC 115/208-230V Marathon Electric Motor

This general-purpose Marathon electric motor is designed for applications requiring a single-phase motor with a C-face mount. It is suitable for replacing or installing in equipment that demands reliable, capacitor start and run operation with a totally enclosed fan-cooled design.

Key Specifications

• Horsepower: 3/4 hp
• RPM: 1200
• Voltage: 115/208-230V, 60 Hz
• Amperage: 11.4/5.8-5.7 amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 56C frame
• Shaft Dimensions: 5/8" diameter x 1 7/8" length, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

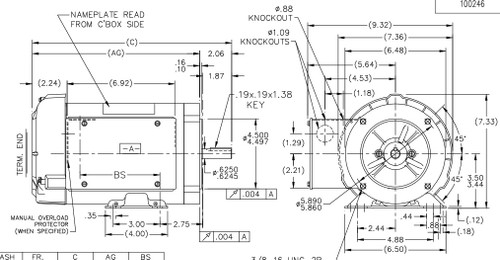

The motor features a removable base and a C-face with four threaded bolt holes spaced 5 7/8" on center across the shaft, allowing for easy mounting of pumps or gear heads. The shaft includes a keyway for secure coupling. Wiring diagrams are provided on the motor nameplate for straightforward installation.

Warranty

1 Year Manufacturer Warranty
