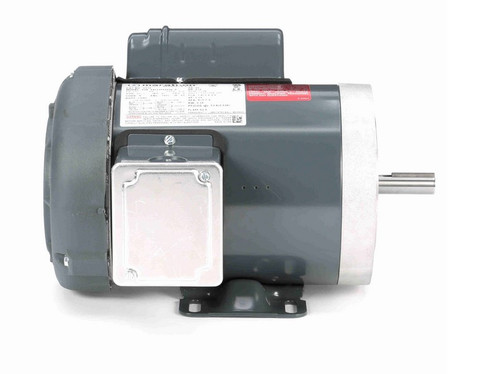

G576 Marathon 1/3 hp 1200 RPM 56C Frame TEFC 115/208-230V Marathon Electric Motor

G576 Marathon 1/3 hp 1200 RPM 56C Frame TEFC 115/208-230V Marathon Electric Motor

This Marathon 1/3 horsepower electric motor is designed for general-purpose applications requiring a single-phase motor with a C-face mount. It is suitable for replacing or installing in equipment that demands a reliable, totally enclosed fan-cooled motor with a keyed shaft.

Key Specifications

• Horsepower: 1/3 hp
• RPM: 1200
• Voltage: 115/208-230V, 60 Hz
• Amperage: 7.8/3.6-3.9 amps
• Enclosure: Totally Enclosed Fan Cooled (TEFC)
• Frame / Diameter: NEMA 56C frame
• Shaft Dimensions: 5/8" diameter x 1 7/8" length, keyed shaft
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

The motor features a removable base and a C-face mount with four threaded bolt holes spaced 5 7/8" on center across the shaft, allowing easy attachment of pumps or gear heads. The shaft includes a keyway for secure coupling. Wiring diagrams are provided on the motor nameplate for straightforward installation.

Warranty

1 Year Manufacturer Warranty
