Y534 Marathon 1/2 hp 1800 RPM 3-Phase 56C Frame TENV (rigid base) 230/460V Marathon Motor

Y534 Marathon 1/2 hp 1800 RPM 3-Phase 56C Frame TENV (rigid base) 230/460V Marathon Motor

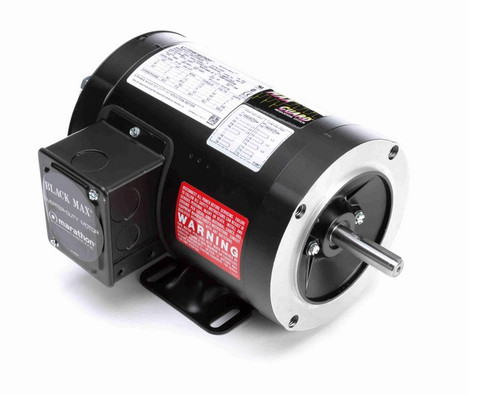

This Marathon 1/2 horsepower, 1800 RPM, 3-phase electric motor is designed for industrial applications requiring reliable, inverter-duty performance. It features a rigid removable base and a C-face mount, making it suitable for direct coupling with pumps or gear heads.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1800
• Voltage: 230/460 V
• Amperage: 1.6/0.8 A
• Enclosure: Totally Enclosed Non-Ventilated (TENV)
• Frame / Diameter: NEMA 56C frame

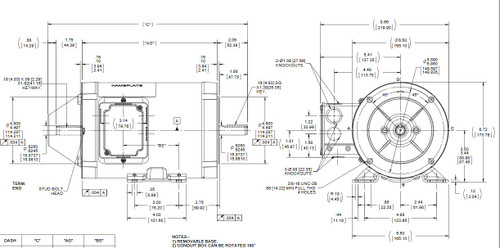

• Shaft Dimensions: 5/8" diameter x 1 7/8" length, keyed shaft
• Rotation: Reversible
• Bearings: Ball bearings

Product Features & Fitment

This motor is encoder ready and rated for inverter (vector) duty with a 1000:1 constant torque capability. The C-face mount includes four threaded bolt holes spaced 5 7/8" on center for secure attachment of pumps or gear heads. The rigid removable base allows flexible installation options, and the motor includes a wiring diagram on the nameplate for easy setup.

Warranty

1 Year Manufacturer Warranty
