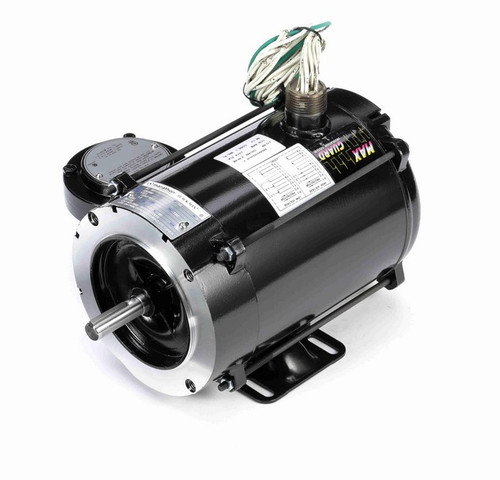

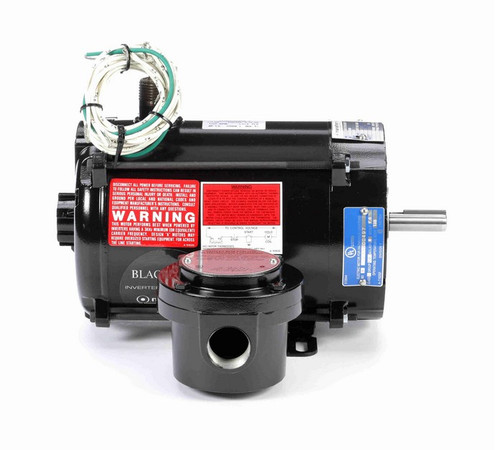

Y602 Marathon 1/2 hp 1800 RPM 3-Phase 56C Frame TENV (rigid base) 230/460V Marathon Motor

SKU:: Y602
UPC:
Weight:: 31.00 LBS
Width:: 10.00 (in)
Height:: 11.00 (in)
Depth:: 17.00 (in)
Shipping:: Free Shipping
ON SALE:: DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage:: 230/460V
Horsepower:: 1/2 HP
RPM:: 1800
Phase:: Three Phase
Frame:: 56C
Enclosure:: TENV
Hertz:: 60 Hz
Amperage:: 1.6/0.8 Amps
Bearings:: Ball Bearings
Service Factor:: 1.0
Insulation Class:: Class F
Mounting:: Rigid Base

Current Stock:

Was: $898.73

Now: $791.78

Quantity:

Adding to cart… The item has been added

Description
Literature
Compliance & Restrictions

Y602 Marathon 1/2 hp 1800 RPM 3-Phase 56C Frame TENV (rigid base) 230/460V Marathon Motor

This Marathon electric motor is a 1/2 horsepower, 1800 RPM, 3-phase motor designed for industrial applications requiring reliable performance. It is suitable for replacing or upgrading motors in HVAC systems, pumps, and other machinery compatible with a NEMA 56C frame and C-face mounting.

Key Specifications

Horsepower: 1/2 hp
RPM: 1800
Voltage: 230/460 V
Amperage: 1.6/0.8 A
Enclosure: Totally Enclosed Non-Ventilated (TENV)
Frame / Diameter: NEMA 56C frame
Shaft Dimensions: 5/8" diameter x 1 7/8" length, keyed shaft
Rotation: Reversible
Bearings: Ball bearings

Product Features & Fitment

This motor features a rigid base and a C-face mount with four threaded bolt holes spaced 5 7/8" on center across the shaft, allowing easy attachment of pumps or gear heads. It is inverter (vector) duty rated with a 1000:1 constant torque capability. The motor includes a wiring diagram on the nameplate for straightforward installation.
