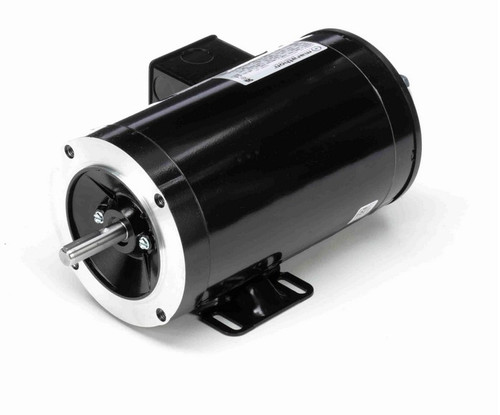

Y282 Marathon 1 hp 1800 RPM 3-Phase 56C Frame TENV (rigid base) 230/460V Marathon Motor

Y282 Marathon 1 hp 1800 RPM 3-Phase 56C Frame TENV (rigid base) 230/460V Marathon Motor

This Marathon 1 horsepower, 3-phase electric motor is designed for industrial applications requiring reliable, inverter-duty performance. It features a totally enclosed non-ventilated (TENV) design ideal for environments where protection from contaminants is essential.

Key Specifications

• Horsepower: 1 hp
• RPM: 1800
• Voltage: 230/460 V
• Amperage: 3.0/1.5 A
• Enclosure: Totally Enclosed Non-Ventilated (TENV)
• Frame / Diameter: NEMA 56C
• Shaft Dimensions: 5/8" diameter x 1 7/8" length, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

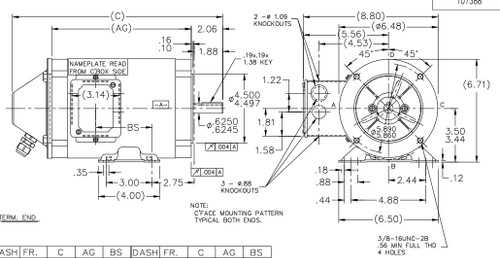

This motor includes a C-face mount with four threaded bolt holes spaced 5 7/8" on center across the shaft, allowing easy attachment of pumps or gear heads. The rigid base construction ensures stable installation. It is equipped with a shaft keyway and comes with a wiring diagram on the nameplate for straightforward electrical connections. The motor is rated for inverter (vector) duty with a 1000:1 constant torque capability.

Warranty

1 Year Manufacturer Warranty
