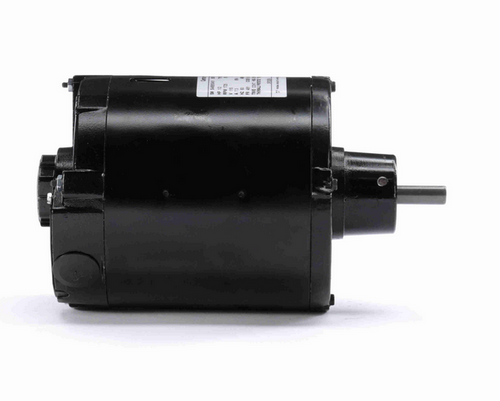

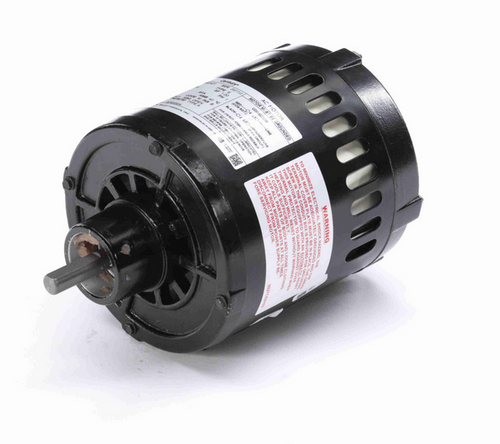

SP2050A Century 1/2 hp 1800 RPM 48Y Frame 115V ODP Century Sump Pump Motor # SP2050A

SP2050A Century 1/2 hp 1800 RPM 48Y Frame 115V ODP Sump Pump Motor

This Century SP2050A motor is a direct replacement for sump pump applications requiring reliable performance. Designed for use with sump pumps featuring a float and cord, it delivers consistent power for efficient water removal.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1800
• Voltage: 115V
• Amperage: 7.3 amps
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 48Y frame
• Shaft Dimensions: 1/2" diameter x 1 1/2" length
• Rotation: Reversible
• Bearings: Sleeve Bearings

Product Features & Fitment

The motor features a split-phase design with a service factor of 1.0 and automatic overload protection. It comes without a base and includes a wiring diagram on the motor nameplate for straightforward installation.

Warranty

1 Year Manufacturer Warranty
