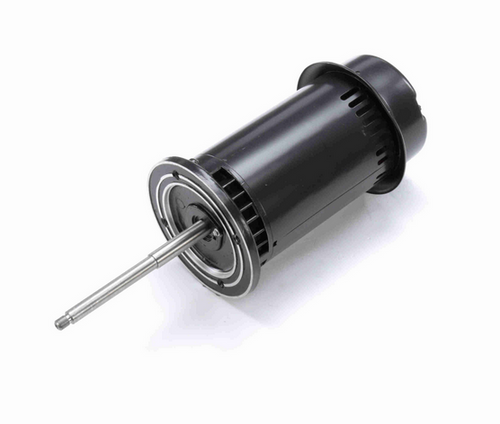

R1152ES Century 1-1/2 hp 3600 RPM 1-Phase 48Y Frame ODP (no base) 230V Century Jet Pump Motor # R1152ES
R1152ES Century 1-1/2 hp 3600 RPM 1-Phase 48Y Frame ODP (no base) 230V Century Jet Pump Motor # R1152ES
R1152ES Century 1-1/2 hp 3600 RPM 1-Phase 48Y Frame ODP (no base) 230V Century Jet Pump Motor # R1152ES
R1152ES Century 1-1/2 hp 3600 RPM 1-Phase 48Y Frame ODP (no base) 230V Century Jet Pump Motor # R1152ES
R1152ES Century 1-1/2 hp 3600 RPM 1-Phase 48Y Frame ODP (no base) 230V Century Jet Pump Motor # R1152ES
R1152ES Century 1-1/2 hp 3600 RPM 1-Phase 48Y Frame ODP (no base) 230V Century Jet Pump Motor # R1152ES
R1152ES Century 1-1/2 hp 3600 RPM 1-Phase 48Y Frame ODP (no base) 230V Century Jet Pump Motor # R1152ES
R1152ES Century 1-1/2 hp 3600 RPM 1-Phase 48Y Frame ODP (no base) 230V Century Jet Pump Motor # R1152ES

Century Electric Motor

R1152ES Century 1-1/2 hp 3600 RPM 1-Phase 48Y Frame ODP (no base) 230V Century Jet Pump Motor # R1152ES

(No reviews) Write a Review
$514.28
$435.85
SKU R1152ES
UPC 7.87E+11
Shipping Free Shipping
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 230V
Horsepower 1/2 HP
RPM 3600
Phase Single Phase
Frame 48Y
Enclosure ODP
Hertz 60 Hz
Amperage 12.0 Amps
Bearings Ball Bearings
Service Factor 1.47
Insulation Class Class B
Adding to cart… The item has been added
Description
  • 1 1/2 hp 3600 RPM, 12.0 amps 230 Volts 60hz. Capacitor Start, Extended Shaft
  • NEMA 48Y frame, Round-Flange, Threaded Stainless Steel Shaft 1/2" Diameter x 5 3/4"
  • Service Factor: 1.47, Overload protection = Auto
  • No Base, CCW pump end, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

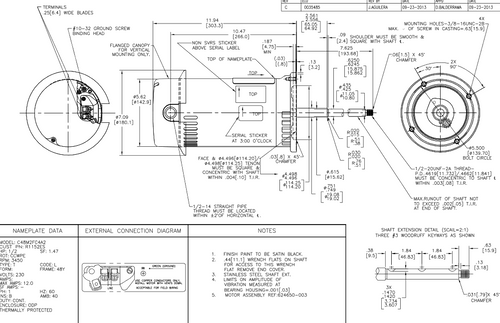

Direct replacement for motor for Sta-Rite pool and spa pumps requiring a single phase electric motor with a round-flange. Wiring diagram on motor name plate. ODP = Open Drip Proof. R1152ES. Replaces Sta-Rite A300FH

Specifications
Compliance Tab /content/product_tabs/p65warnings.html
ON SALE DISCOUNTED PRICES & SHIPS SAME DAY FOR ORDERS PLACED BEFORE 2 PM
Voltage 230V
Horsepower 1/2 HP
RPM 3600
Phase Single Phase
Frame 48Y
Enclosure ODP
Hertz 60 Hz
Amperage 12.0 Amps
Bearings Ball Bearings
Service Factor 1.47
Insulation Class Class B
!
