108047.00 Leeson | 1/2 hp 1800 RPM 56C Frame 12 Volts DC TENV

108047.00 Leeson | 1/2 hp 1800 RPM 56C Frame 12 Volts DC TENV

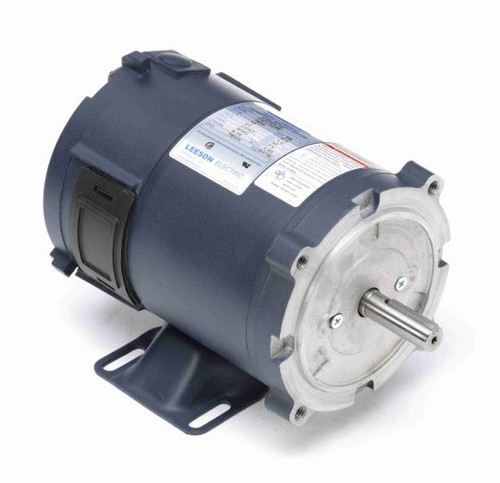

This Leeson 1/2 horsepower, 1800 RPM permanent magnet DC motor is designed for low voltage applications such as battery or solar-powered systems. It serves as an exact replacement for the Dayton 6ML02 motor, offering reliable performance in heavy load and dynamic braking scenarios.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1800
• Voltage: 12 Volts DC
• Amperage: 39.0 Amps
• Enclosure: Totally Enclosed Non-Ventilated (TENV)
• Frame / Diameter: NEMA 56C Frame
• Bearings: Sealed ball bearings

Product Features & Fitment

The motor features a 56C face with a removable bolt-on base for flexible mounting options. Its low voltage design includes high starting torque and linear speed/torque characteristics across the entire speed range. The motor is reversible with a simple 2-lead connection and is suitable for installations requiring dynamic braking for faster stops.

Cross Reference

• Dayton 6ML02 (The Dayton is actually made by Leeson Electric)
• C4D17NK7G, 108047.00

Warranty

1 Year Manufacturer Warranty
