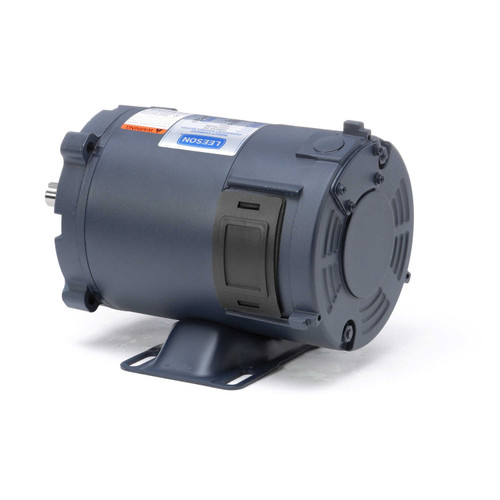

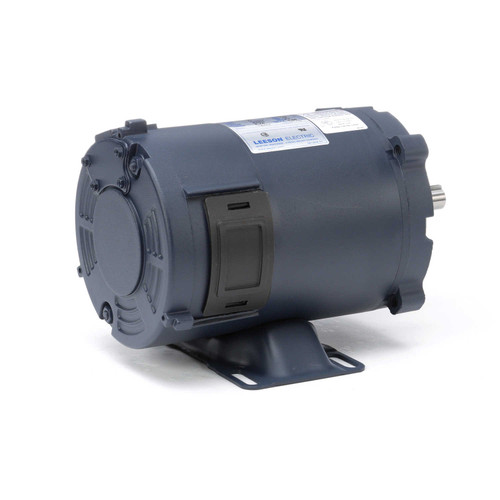

This Leeson 1/4 horsepower, 1800 RPM permanent magnet DC motor operates at 12 volts and is an exact replacement for the Dayton 6MK98 motor. It is designed for low voltage applications such as battery or solar-powered systems, delivering high starting torque for heavy load requirements.

Key Specifications

• Horsepower: 1/4 hp
• RPM: 1800
• Voltage: 12 Volts DC
• Amperage: 21.0 Amps
• Enclosure: Totally Enclosed Non Ventilated (TENV)

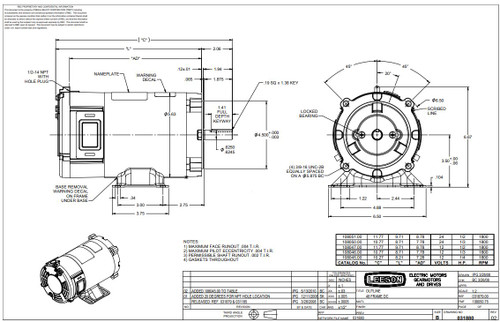

• Frame / Diameter: NEMA 56C Frame
• Bearings: Sealed ball bearings

Product Features & Fitment

The motor features a 56C face with a removable bolt-on base for flexible mounting options. It offers linear speed and torque characteristics across its speed range and supports dynamic braking for faster stops. The motor is reversible with a simple two-lead connection, making installation straightforward in various low voltage environments.

Cross Reference

• Dayton 6MK98 (The Dayton is actually made by Leeson Electric)
• C4D17NK5E, 108045.00

Warranty

1 Year Manufacturer Warranty
