E100019.00 Leeson | 1/2 hp 1800 RPM 56C Frame ODP C-Face (no base) 115/230V

24.00 LBS
Free Shipping
  • 1/2 hp 1800 RPM, 4.6/2.3 amps 115/230 Volts 60hz. single Phase Motor
  • NEMA 56C Frame Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.25 - overload protection = Manual
  • No Base - Reversible - Round Body Motor - Ball Bearings - Class B Insulation
  • 1 Year Manufacture Warranty

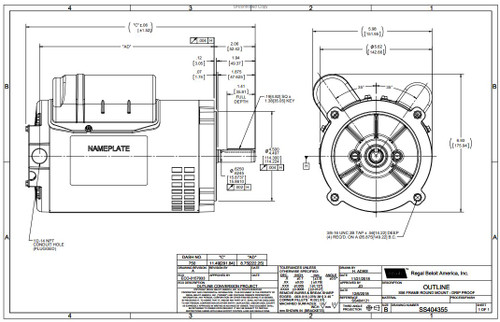

General purpose motor can be used for many applications requiring a single phase Electric motor with a C-face mount. Motor is round body with no base mounting. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof.

M4K17DC23A, E100019.00
