E100025.00 Leeson | 1/2 hp 1800 RPM 56C Frame ODP C-Face (no base) 115/230V

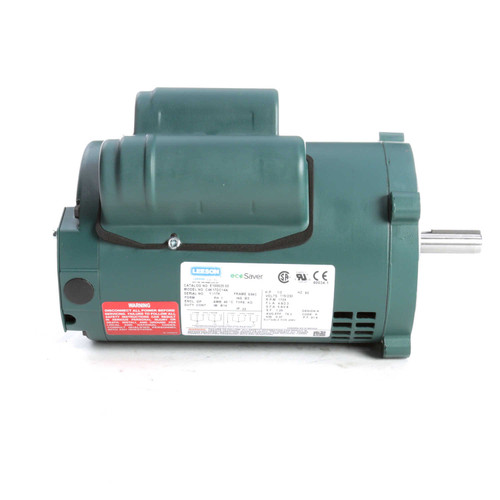

Leeson 1/2 hp 1800 RPM 56C Frame ODP C-Face (no base) Motor - Model E100025.00

This general-purpose single-phase electric motor is designed for applications requiring a 1/2 hp, 1800 RPM motor with a C-face mount. It replaces similar Leeson motors and is suitable for driving pumps, gear heads, and other equipment needing a keyed shaft and open drip proof enclosure.

Key Specifications

• Horsepower: 1/2 hp
• RPM: 1800
• Voltage: 115/230V
• Amperage: 4.6/2.3 amps
• Enclosure: Open Drip Proof (ODP)
• Frame / Diameter: NEMA 56C Frame
• Shaft Dimensions: 5/8" diameter x 1 7/8" length, keyed shaft
• Rotation: Reversible
• Bearings: Ball Bearings

Product Features & Fitment

The motor features a round body design without a base, allowing flexible mounting options. It includes a C-face with four threaded bolt holes spaced 5 7/8" on center for secure attachment of pumps or gear heads. Wiring information is provided on the motor nameplate for easy installation.

Warranty

1 Year Manufacturer Warranty
