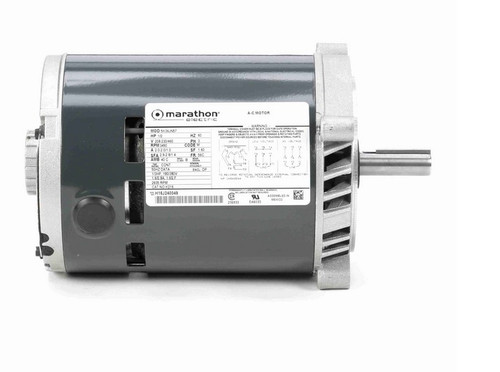

K216 Marathon 1/2 hp 3600 RPM 3-Phase 56C Frame ODP (no base) 208-230/460V Marathon Electric Motor

SKU:
K216
Weight:
16.00 LBS
Shipping:
Free Shipping
ON SALE:
DISCOUNTED PRICES AND FREE GROUND SHIPPING
Was: $291.60
Now: $187.30
Adding to cart… The item has been added
  • 1/2 hp 3600 RPM, 2.0-2.0/1.0 amps 208-230/460 Volts 60hz. 3-Phase
  • NEMA 56C frame, C-face, Keyed Shaft 5/8" Diameter x 1 7/8"
  • Service Factor: 1.6, Overload protection = None
  • No Base, Reversible, Ball Bearings, Class B Insulation
  • 1 Year Manufacture Warranty

General purpose motor can be used for many applications requiring a single phase electric motor with a C-face mount. Shaft has keyway. Motor has 4 threaded bolt holes on face for mounting a pump or gear head to the motor. Bolt holes are 5 7/8" on center measured across the shaft. Wiring diagram on motor name plate. ODP = Open Drip Proof.

Marathon Model: 5K36JN57
Replaces Leeson C4T34DC46A, E100056.00
